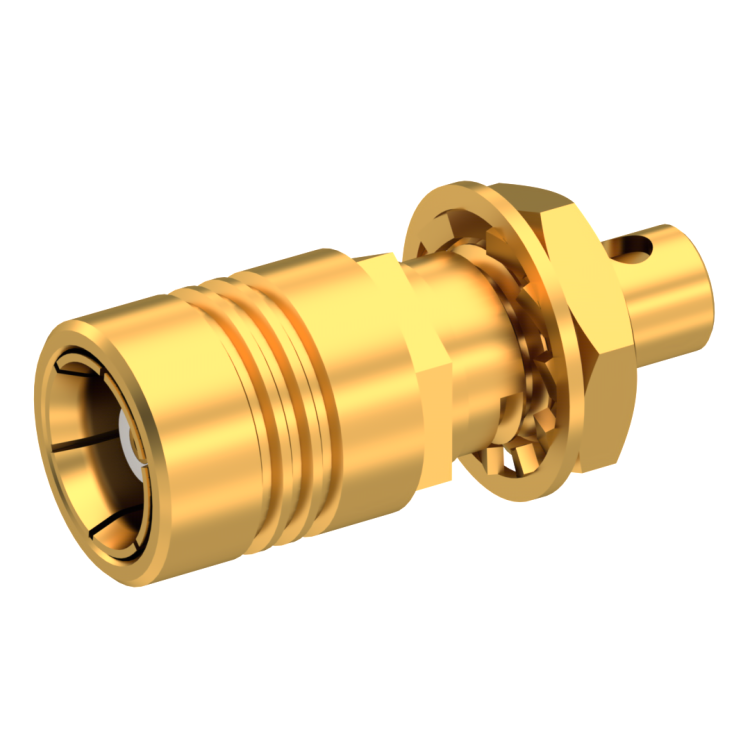

SMB / STRAIGHT BULKHEAD PLUG SOLDER TYPE CABLE 085

R116056000

Brand: RADIALL

Product Type: Connectors

Interface I: SMB

Model: CABLE CONNECTOR

Max Frequency (GHz): 4

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: BULKHEAD

Connector Type: PLUG

Gender 1: FEMALE

Cable Standard: KS 1, RG 405

Cable Attachment: SOLDER TYPE

Cable Groups: .085''/50 SR

Mating System: SLIDE-ON

Center Contact Plating: GOLD 1.3 OVER NICKEL 2

Body Plating: GOLD 0.2 OVER NICKEL 2

OR
SMB / STRAIGHT BULKHEAD PLUG SOLDER TYPE CABLE 085

R116056000 - Please contact Radiall for additional information

For REACH and RoHS status, contact Radiall for more information
