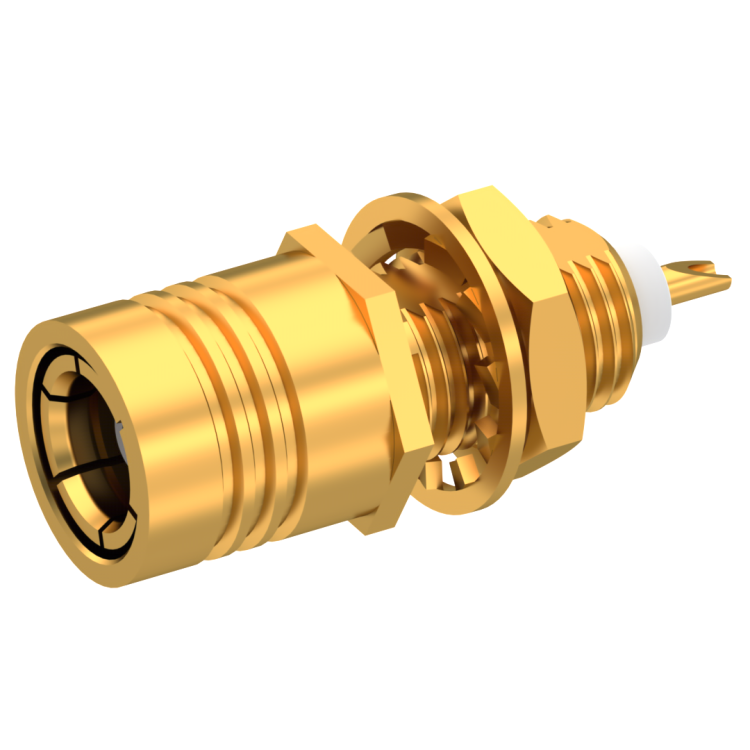

SMB / STRAIGHT BULKHEAD PLUG RECEPTACLE FRONT MOUNT SOLDER POT CONTACT

R115556000

Brand: RADIALL

Product Type: Connectors

Interface I: SMB

Model: PANEL RECEPTACLE

Max Frequency (GHz): 4

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: BULKHEAD

Connector Type: PLUG

Gender 1: FEMALE

Mating System: SNAP-ON

Center Contact Termination: SOLDER POT

Center Contact Plating: GOLD 1.3 OVER NICKEL 2

Body Plating: GOLD 0.2 OVER NICKEL 2

OR
SMB / STRAIGHT BULKHEAD PLUG RECEPTACLE FRONT MOUNT SOLDER POT CONTACT

R115556000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.
