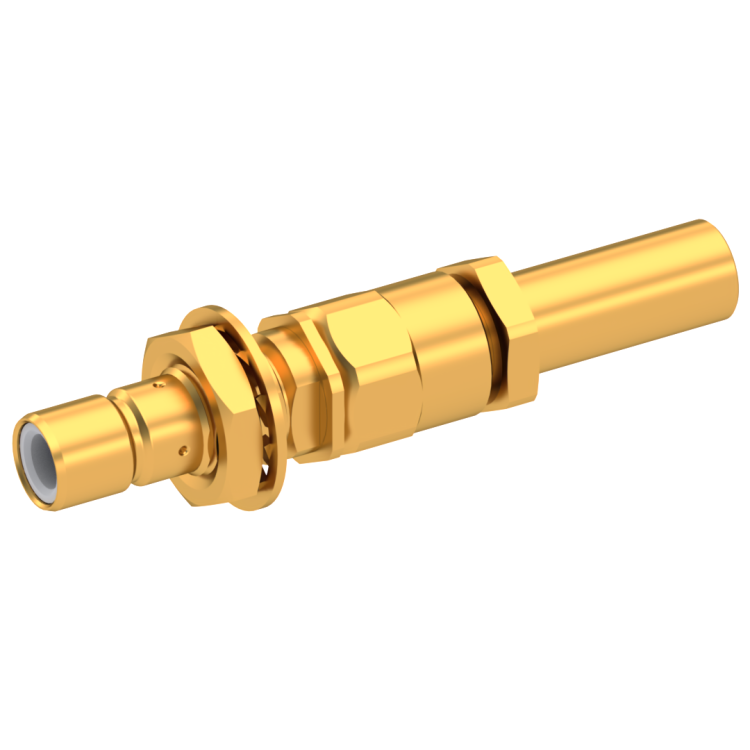

SMB / STRAIGHT BULKHEAD JACK FRONT MOUNT CRIMP TYPE - CABLE 2.6/50+75 S
R114312000 - Please contact Radiall for additional information
For REACH and RoHS status, click here for additional information.
R114312000
Brand RADIALL
Product Type Connectors
Interface I SMB
Model CABLE CONNECTOR
Max Frequency (GHz) 4
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting BULKHEAD
Connector Type JACK
Gender 1 MALE
Cable Standard KX 22A, RG 179, RG 187, RG 188, RG 316
Cable Attachment CRIMP TYPE
Cable Groups 2.6/50 S, 2.6/75 S
Mating System SNAP-ON
Center Contact Plating GOLD 1.3 OVER NICKEL 2
Body Plating GOLD 0.2 OVER NICKEL 2
