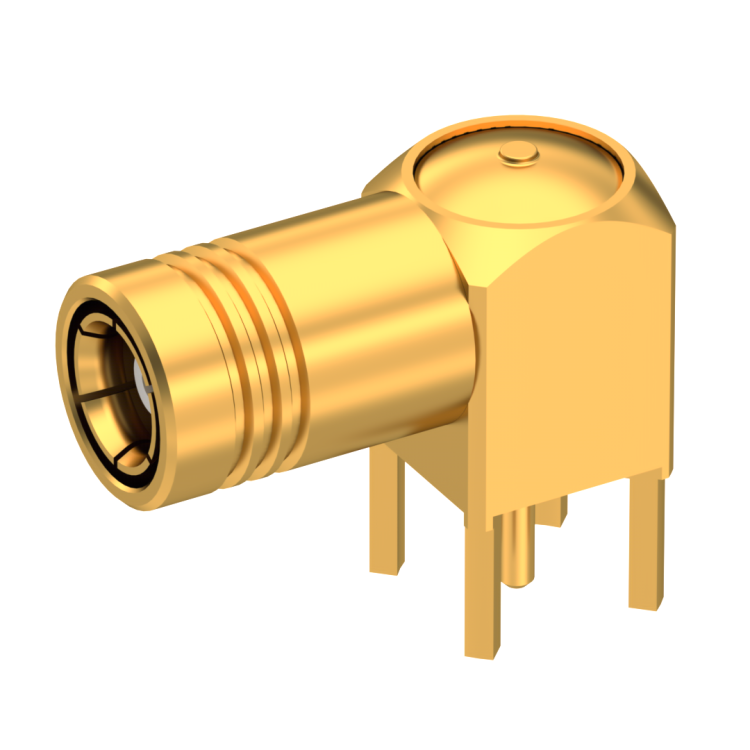

SMB / RIGHT ANGLE FEMALE RECEPTACLE FOR PCB SOLDER LEGS

R116666030

Brand: RADIALL

Product Type: Connectors

Interface I: SMB

Model: PCB RECEPTACLE

Max Frequency (GHz): 4

Impedance (Ohm): 50

Geometry: RIGHT ANGLE

PCB Mounting: SOLDER LEGS

Connector Type: PLUG

Gender 1: FEMALE

Mating System: SLIDE-ON

Center Contact Plating: GOLD 0.6 OVER NICKEL 2

Body Plating: GOLD 0.5 OVER NICKEL 2

OR
SMB / RIGHT ANGLE FEMALE RECEPTACLE FOR PCB SOLDER LEGS

R116666030 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
