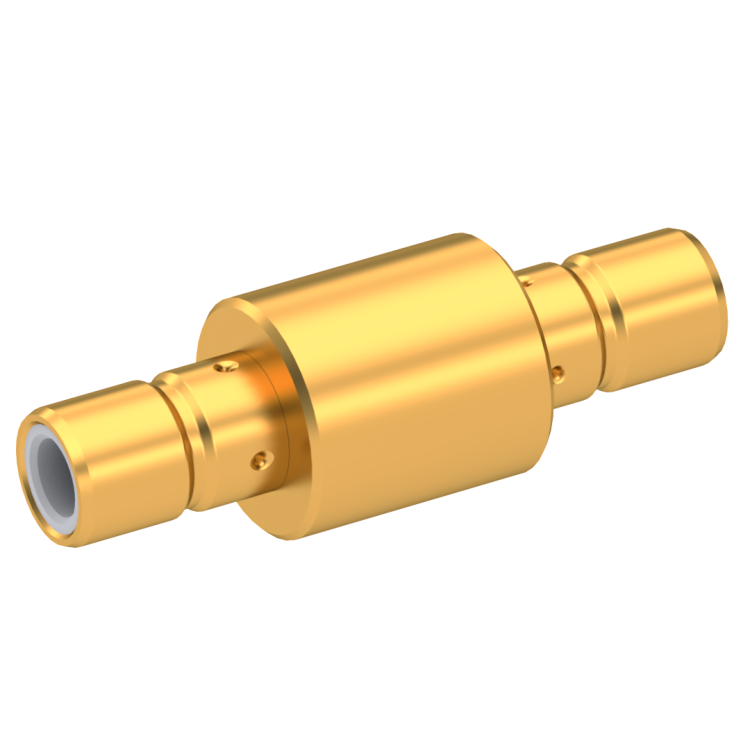

SMB / MALE-MALE ADAPTER

R114703000

Brand: RADIALL

Product Type: Adapters

Interface I: SMB

Interface II: SMB

Max Frequency (GHz): 4

Impedance (Ohm): 50

Geometry: STRAIGHT

Connector Type: JACK/JACK

Gender 1: MALE

Gender 2: MALE

Mating System: SNAP-ON

Mating System 2: SNAP-ON

Center Contact Plating: GOLD 1.3 OVER NICKEL 2

Body Plating: GOLD 0.2 OVER NICKEL 2

OR
SMB / MALE-MALE ADAPTER

R114703000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.
