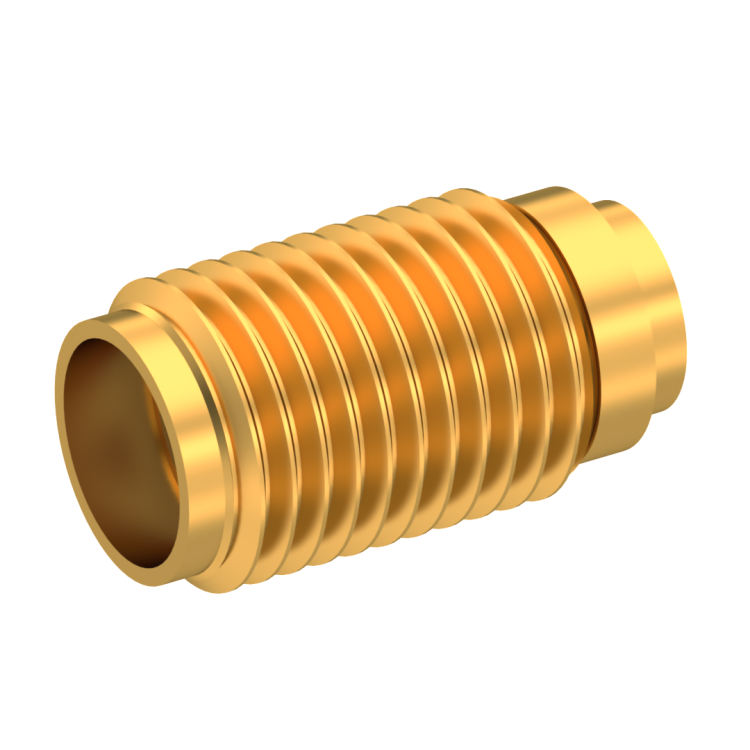

SMA / THREAD-IN HERMETIC JACK RECEPTACLE SPECIAL REMOVABLE PIN
R125609080 - Please contact Radiall for additional information
For REACH and RoHS status, click here for additional information.
R125609080
Brand RADIALL
Product Type Connectors
Interface I SMA
Model PANEL RECEPTACLE
Specific Feature GLASS SEAL, HERMETIC
Max Frequency (GHz) 18
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting THREAD-IN
Connector Type JACK
Gender 1 FEMALE
Mating System SCREW-ON
Center Contact Termination AUXILLIARY CONTACT
Center Contact Plating GOLD 1.3 OVER NICKEL 2
Body Plating GOLD 0.5 OVER NICKEL 2
