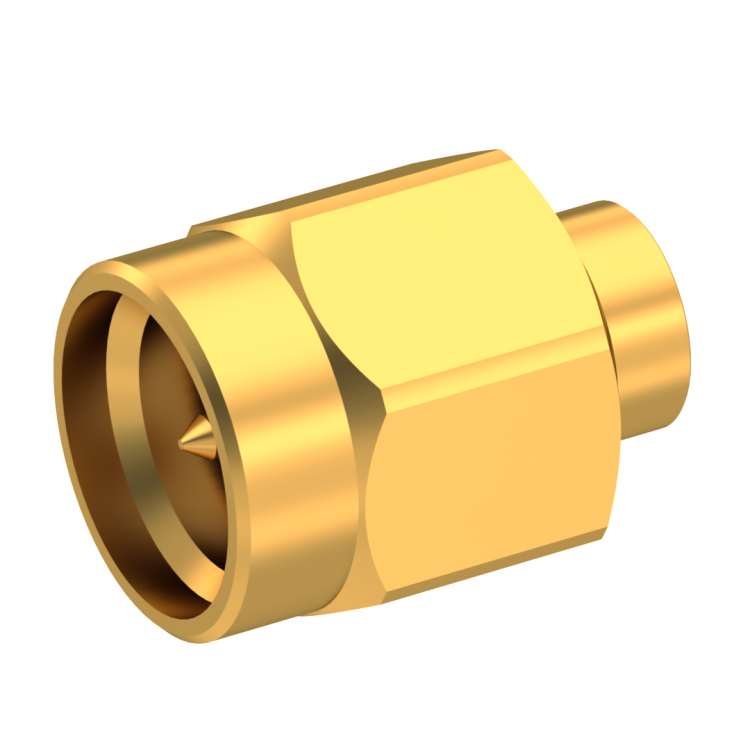

SMA / STRAIGHT PLUG SOLDER TYPE CABLE .141

R125055700

Brand: RADIALL

Product Type: Connectors

Interface I: SMA

Model: CABLE CONNECTOR

Max Frequency (GHz): 27

Impedance (Ohm): 50

Geometry: STRAIGHT

Connector Type: PLUG

Gender 1: MALE

Cable Standard: KS 2, RG 402

Cable Attachment: SOLDER TYPE

Cable Groups: .141''/50 SR

Mating System: SCREW-ON

Center Contact Plating: GOLD 1.3 OVER NICKEL 2

Body Plating: GOLD 0.5 OVER NICKEL 2

OR
SMA / STRAIGHT PLUG SOLDER TYPE CABLE .141

R125055700 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information

Datasheets
Datasheets
Search Tip
Remove spaces, dashes, and periods. Enter the first several characters to obtain all values within a product family (ex: R125) or enter a complete part number to target a specific result (ex: R125069000).
