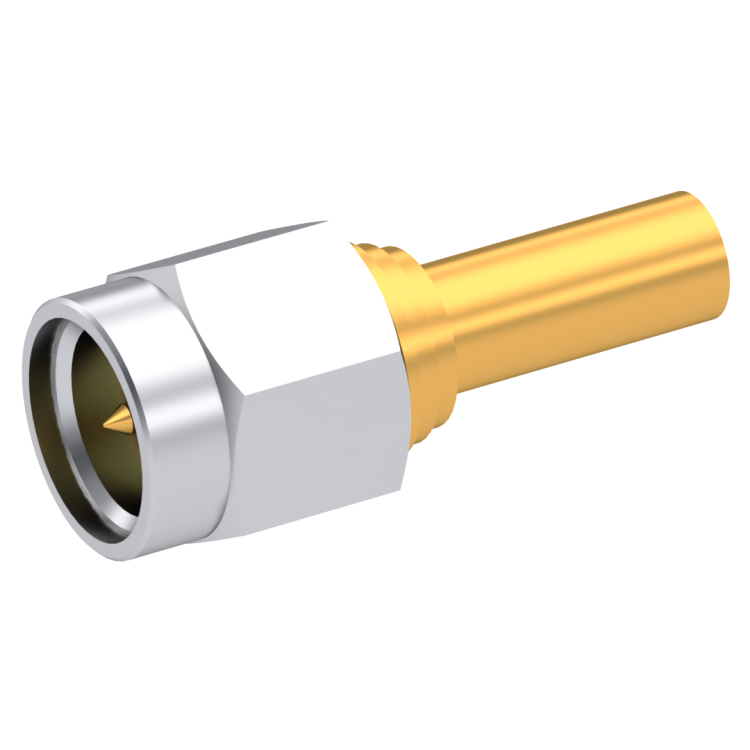

SMA / STRAIGHT PLUG MALE SOLDER TYPE FOR 2.6/50 S CABLE GOLD NON-CAPTIVE CONTACT

9001-1033-003

Brand: AEP

Product Type: Connectors

Interface I: SMA

Model: CABLE CONNECTOR

Specific Feature: NON-CAPTIVE CONTACT

Max Frequency (GHz): 18

Impedance (Ohm): 50

Geometry: STRAIGHT

Connector Type: PLUG

Gender 1: MALE

Cable Standard: RG 174|RG 179|RG 316|M17/113|M17/119|M17/172|M17/173

Cable Attachment: SOLDER TYPE

Cable Groups: 2.6/50 S

Mating System: SCREW-ON

Center Contact Plating: GOLD PLATED PER MIL-G-45204

Body Plating: GOLD

OR
SMA / STRAIGHT PLUG MALE SOLDER TYPE FOR 2.6/50 S CABLE GOLD NON-CAPTIVE CONTACT

9001-1033-003 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
