SMA / STRAIGHT PLUG MALE SOLDER TYPE FOR 2.6/50 D CABLE GOLD NON-CAPTIVE CONTACT

9001-1033-019 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Click here to check for distribution inventory

Datasheets Download
Datasheets
Cabling Instructions

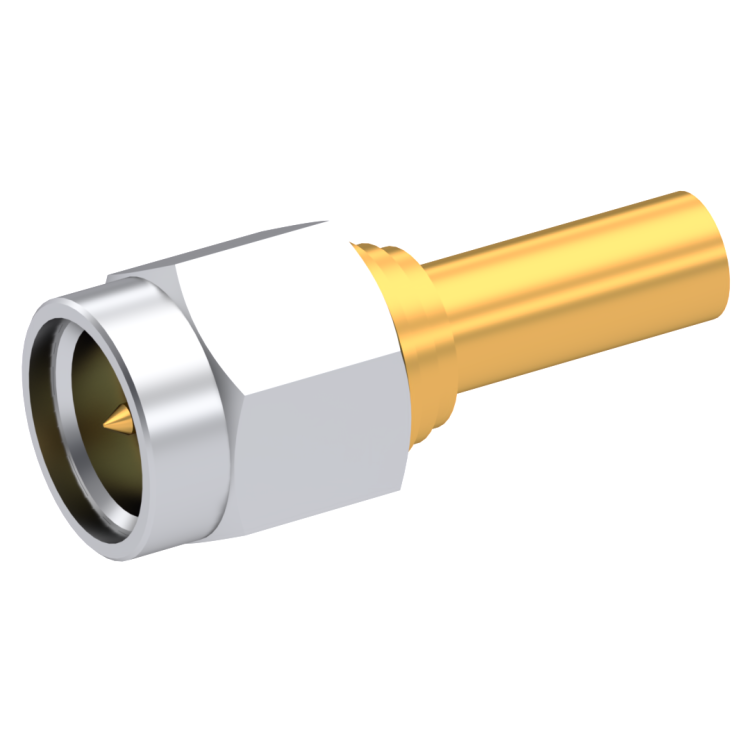

SMA / STRAIGHT PLUG MALE SOLDER TYPE FOR 2.6/50 D CABLE GOLD NON-CAPTIVE CONTACT

9001-1033-019

Brand AEP

Product Type Connectors

Interface I SMA

Model CABLE CONNECTOR

Specific Feature NON-CAPTIVE CONTACT

Max Frequency (GHz) 18

Impedance (Ohm) 50

Geometry STRAIGHT

Connector Type PLUG

Gender 1 MALE

Cable Standard RD 316|RG 174DS|RG 316DS|M17/152

Cable Attachment SOLDER TYPE

Cable Groups 2.6/50 D

Mating System SCREW-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating GOLD
