SMA / STRAIGHT PLUG MALE CRIMP TYPE FOR 5/50 S PASSIVATED NON-CAPTIVE CONTACT

9001-9023-006 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Click here to check for distribution inventory

Datasheets Download
Datasheets
Cabling Instructions

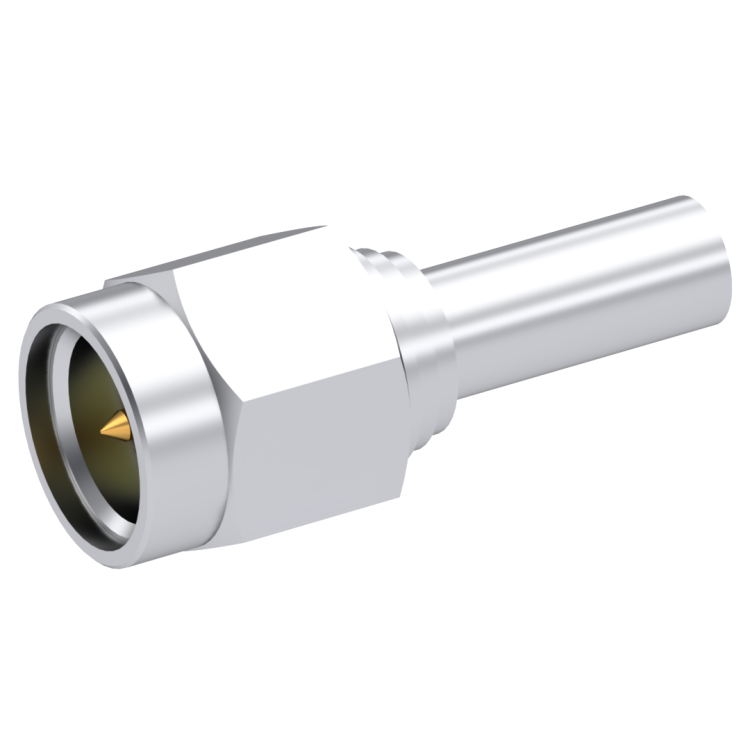

SMA / STRAIGHT PLUG MALE CRIMP TYPE FOR 5/50 S PASSIVATED NON-CAPTIVE CONTACT

9001-9023-006

Brand AEP

Product Type Connectors

Interface I SMA

Model CABLE CONNECTOR

Specific Feature NON-CAPTIVE CONTACT

Max Frequency (GHz) 18

Impedance (Ohm) 50

Geometry STRAIGHT

Connector Type PLUG

Gender 1 MALE

Cable Standard RG 58|RG 141|M17/111|M17/155

Cable Attachment CRIMP TYPE

Cable Groups 5/50 S

Mating System SCREW-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating PASSIVATED
