SMA / STRAIGHT PLUG MALE CLAMP TYPE FOR 5/50 D GOLD CAPTIVE CONTACT

9201-1553-001 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Click here to check for distribution inventory

Datasheets Download
Datasheets
Cabling Instructions

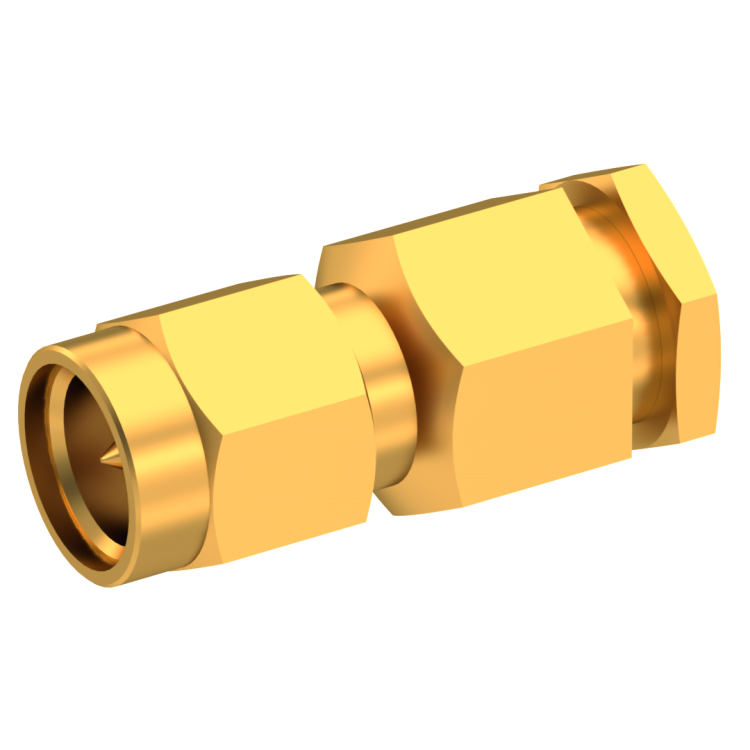

SMA / STRAIGHT PLUG MALE CLAMP TYPE FOR 5/50 D GOLD CAPTIVE CONTACT

9201-1553-001

Brand AEP

Product Type Connectors

Interface I SMA

Model CABLE CONNECTOR

Specific Feature CAPTIVE CONTACT

Max Frequency (GHz) 18

Impedance (Ohm) 50

Geometry STRAIGHT

Connector Type PLUG

Gender 1 MALE

Cable Standard RG 142|RG 223|RG 400|M17/60|M17/84|M17/158

Cable Attachment CLAMP TYPE

Cable Groups 5/50 D

Mating System SCREW-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating GOLD
