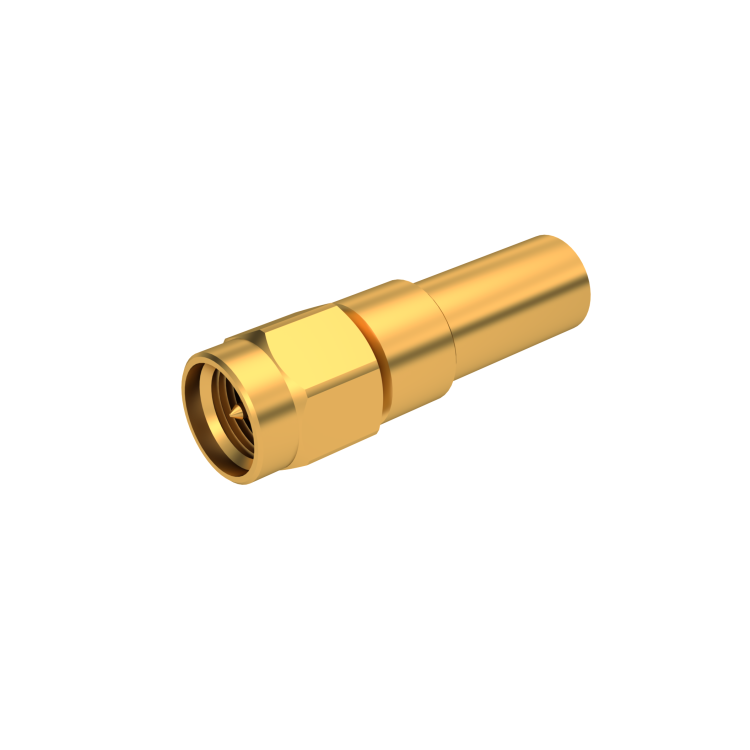

SMA / STRAIGHT PLUG FULL CRIMP TYPE CABLE 5/50 S

R125075320

Brand: RADIALL

Product Type: Connectors

Interface I: SMA

Model: CABLE CONNECTOR

Max Frequency (GHz): 12.4

Impedance (Ohm): 50

Geometry: STRAIGHT

Connector Type: PLUG

Gender 1: MALE

Cable Standard: KX 15, RG 141, RG 58

Cable Attachment: CRIMP TYPE, FULL CRIMP TYPE

Cable Groups: 5/50 S

Mating System: SCREW-ON

Center Contact Plating: GOLD 1.3 OVER NICKEL 2

Body Plating: GOLD 0.5 OVER NICKEL 2

OR
SMA / STRAIGHT PLUG FULL CRIMP TYPE CABLE 5/50 S

R125075320 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
