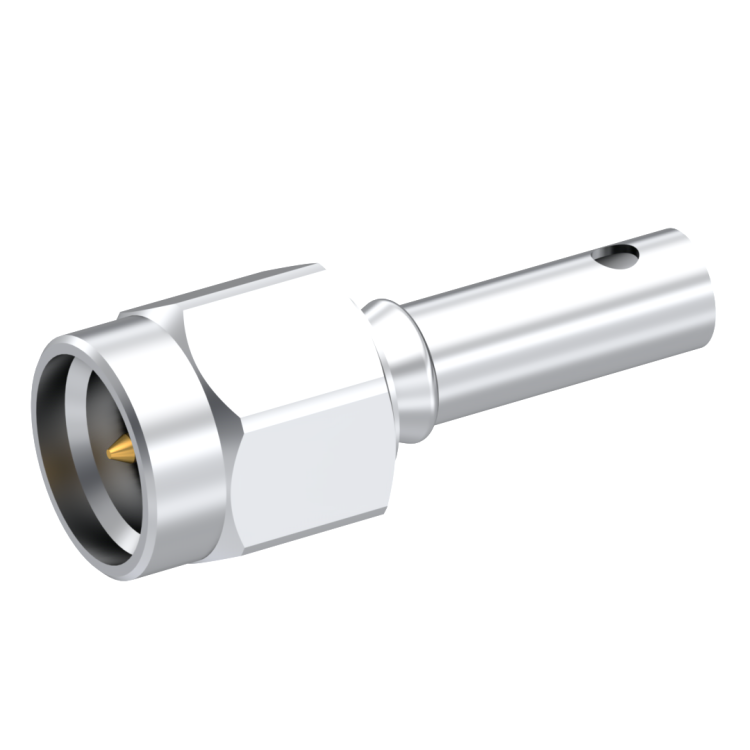

SMA / STRAIGHT PLUG CRIMP TYPE CABLE 2.6/50 S

R125072001

Brand: RADIALL

Product Type: Connectors

Interface I: SMA

Model: CABLE CONNECTOR

Max Frequency (GHz): 12.4

Impedance (Ohm): 50

Geometry: STRAIGHT

Connector Type: PLUG

Gender 1: MALE

Cable Standard: KX 22A, RG 188, RG 316

Cable Attachment: CRIMP TYPE

Cable Groups: 2.6/50 S

Mating System: SCREW-ON

Center Contact Plating: GOLD 1.3 OVER NICKEL 2

Body Plating: PASSIVATED

OR
SMA / STRAIGHT PLUG CRIMP TYPE CABLE 2.6/50 S

R125072001 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.
