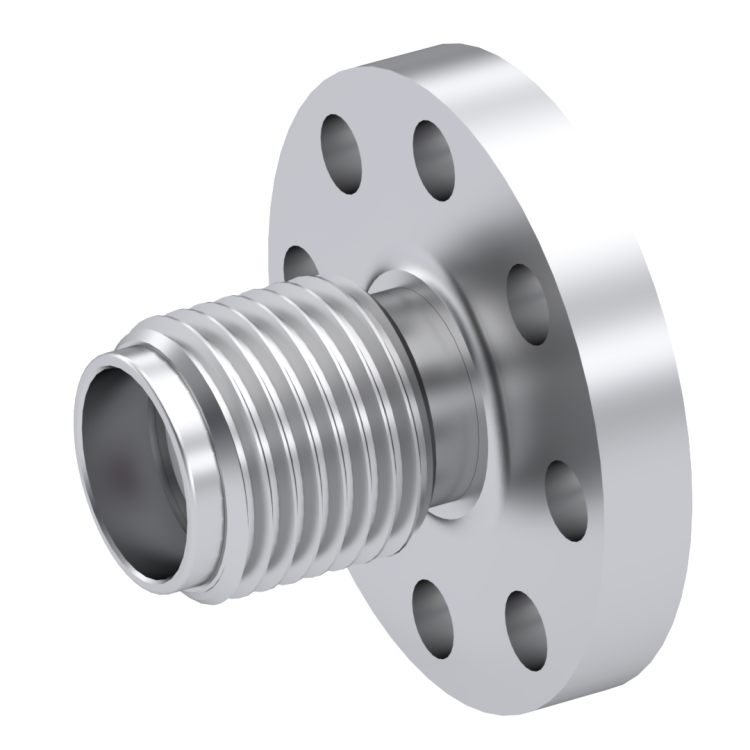

SMA / STRAIGHT JACK RECEPTACLE FEMALE PASSIVATED NON-CAPTIVE CONTACT|STANDARD FLANGE

9003-9213-002 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
SMA / STRAIGHT JACK RECEPTACLE FEMALE PASSIVATED NON-CAPTIVE CONTACT|STANDARD FLANGE

9003-9213-002

Brand AEP

Product Type Connectors

Interface I SMA

Model PANEL RECEPTACLE

Specific Feature NON-CAPTIVE CONTACT

Max Frequency (GHz) 18

Impedance (Ohm) 50

Geometry STRAIGHT

Panel Mounting THREAD-IN

PCB Mounting SMT

Connector Type JACK

Gender 1 FEMALE

Mating System SCREW-ON

Center Contact Termination STRIPLINE

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating PASSIVATED
