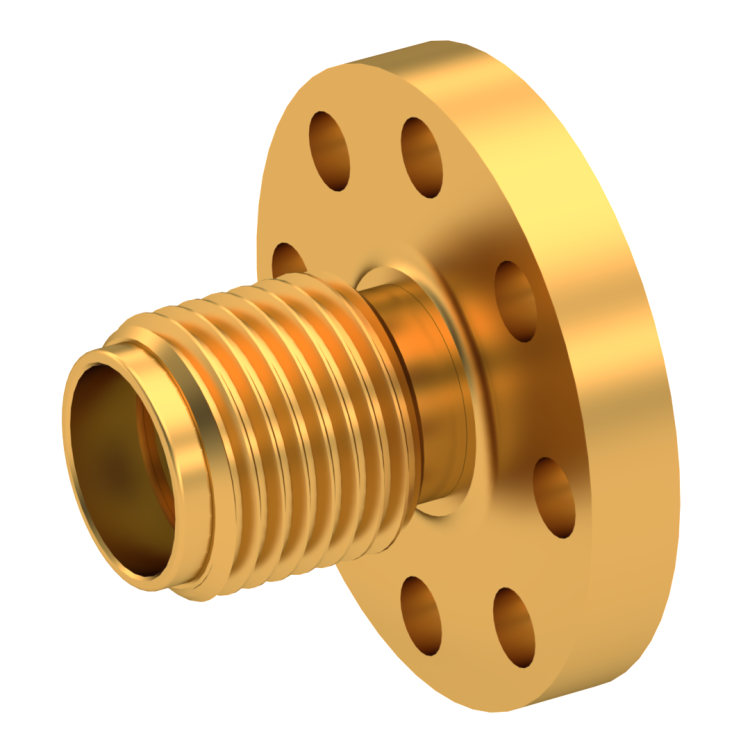

SMA / STRAIGHT JACK RECEPTACLE FEMALE GOLD NON-CAPTIVE CONTACT|STANDARD FLANGE

9003-1213-001

Brand: AEP

Product Type: Connectors

Interface I: SMA

Model: PANEL RECEPTACLE

Specific Feature: NON-CAPTIVE CONTACT

Max Frequency (GHz): 18

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: THREAD-IN

PCB Mounting: SMT

Connector Type: JACK

Gender 1: FEMALE

Mating System: SCREW-ON

Center Contact Termination: STRIPLINE

Center Contact Plating: GOLD PLATED PER MIL-G-45204

Body Plating: GOLD

Click here to check availability
OR
SMA / STRAIGHT JACK RECEPTACLE FEMALE GOLD NON-CAPTIVE CONTACT|STANDARD FLANGE

9003-1213-001 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
