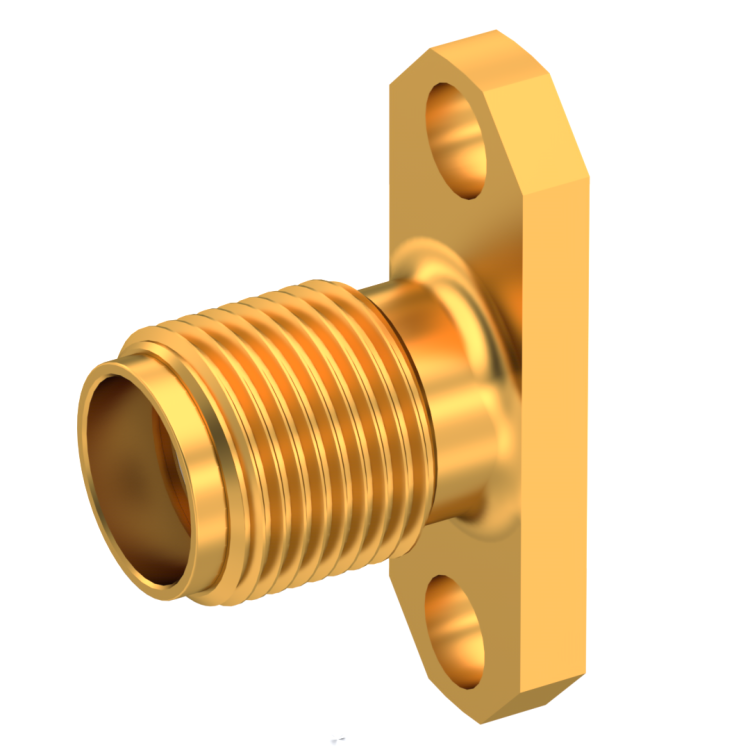

SMA / STRAIGHT JACK RECEPTACLE FEMALE GOLD CAPTIVE CONTACT

9208-1113-000 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

SMA / STRAIGHT JACK RECEPTACLE FEMALE GOLD CAPTIVE CONTACT

9208-1113-000

Brand AEP

Product Type Connectors

Interface I SMA

Model PANEL RECEPTACLE

Specific Feature CAPTIVE CONTACT

Max Frequency (GHz) 18

Impedance (Ohm) 50

Geometry STRAIGHT

Panel Mounting 2 HOLE FLANGE

Connector Type JACK

Gender 1 FEMALE

Mating System SCREW-ON

Center Contact Termination SLOTTED

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating GOLD
