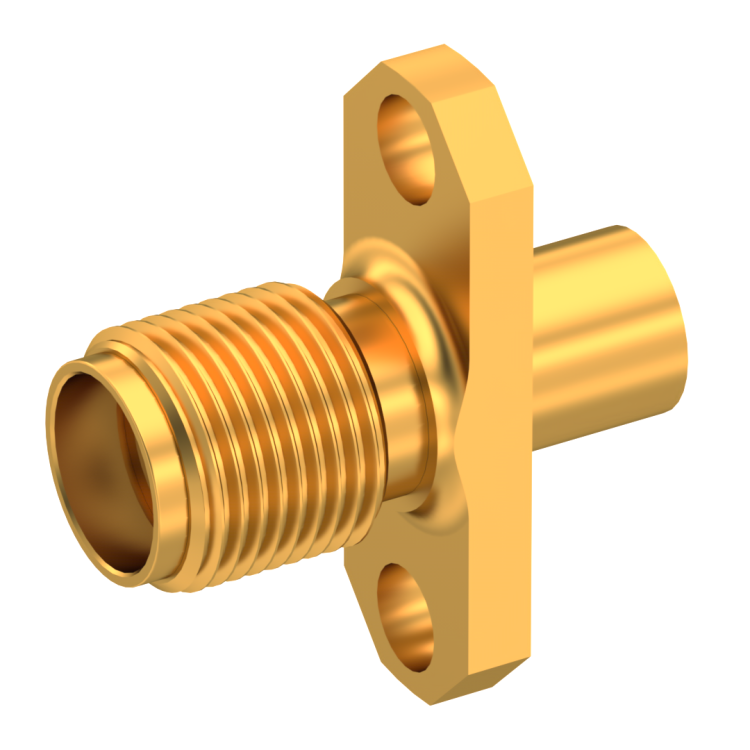

SMA / STRAIGHT JACK FEMALE SOLDER TYPE FOR .141''/50 SR GOLD NON-CAPTIVE CONTACT

9441-1083-009

Brand: AEP

Product Type: Connectors

Interface I: SMA

Model: CABLE CONNECTOR

Specific Feature: NON-CAPTIVE CONTACT

Max Frequency (GHz): 18

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: 2 HOLE FLANGE

Connector Type: JACK

Gender 1: FEMALE

Cable Standard: KS 2|RG 402|M17/130

Cable Attachment: SOLDER TYPE

Cable Groups: .141''/50 SR

Mating System: SCREW-ON

Center Contact Plating: GOLD PLATED PER MIL-G-45204

Body Plating: GOLD

OR
SMA / STRAIGHT JACK FEMALE SOLDER TYPE FOR .141''/50 SR GOLD NON-CAPTIVE CONTACT

9441-1083-009 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.
