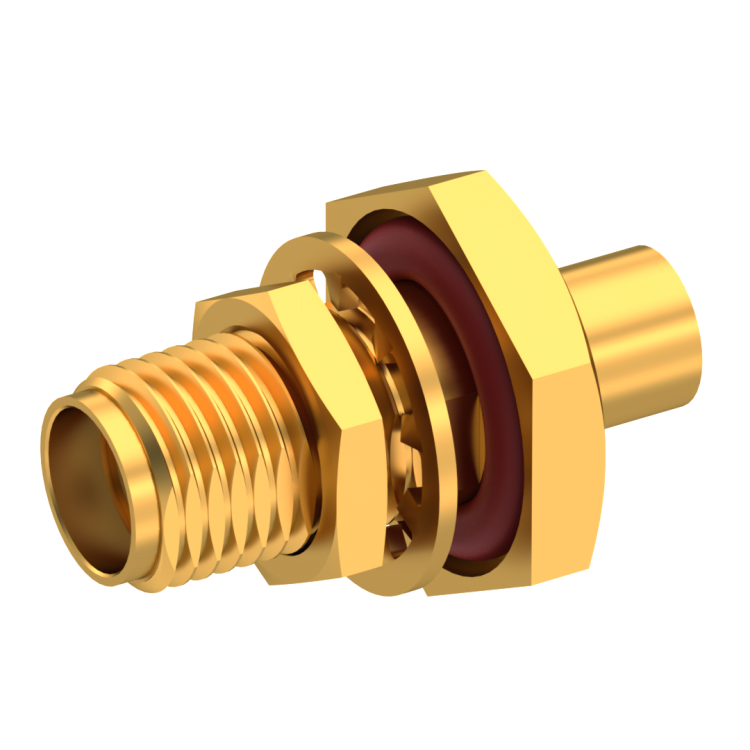

SMA / STRAIGHT JACK FEMALE SOLDER TYPE FOR .085''/50 SR GOLD CAPTIVE CONTACT FOR ONE STEP ASSEMBLY|PANEL SEALED

9453-1583-010

Brand AEP

Product Type Connectors

Interface I SMA

Model CABLE CONNECTOR

Specific Feature CAPTIVE CONTACT, PANEL SEALED

Max Frequency (GHz) 18

Impedance (Ohm) 50

Geometry STRAIGHT

Panel Mounting BULKHEAD

Connector Type JACK

Gender 1 FEMALE

Cable Standard RG 405|M17/133

Cable Attachment SOLDER TYPE

Cable Groups .085''/50 SR

Mating System SCREW-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating GOLD
