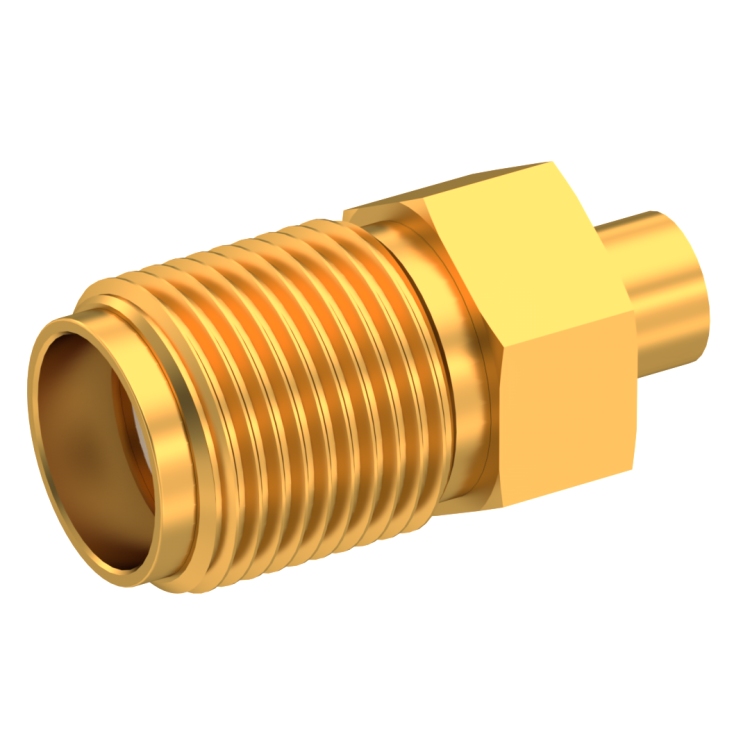

SMA / STRAIGHT JACK FEMALE SOLDER TYPE FOR .085''/50 SR GOLD CAPTIVE CONTACT FOR ONE STEP ASSEMBLY

9402-1583-010 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
Cabling Instructions
SMA / STRAIGHT JACK FEMALE SOLDER TYPE FOR .085''/50 SR GOLD CAPTIVE CONTACT FOR ONE STEP ASSEMBLY

9402-1583-010

Brand AEP

Product Type Connectors

Interface I SMA

Model CABLE CONNECTOR

Specific Feature CAPTIVE CONTACT

Max Frequency (GHz) 18

Impedance (Ohm) 50

Geometry STRAIGHT

Connector Type JACK

Gender 1 FEMALE

Cable Standard RG 405|M17/133

Cable Attachment SOLDER TYPE

Cable Groups .085''/50 SR

Mating System SCREW-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating GOLD
