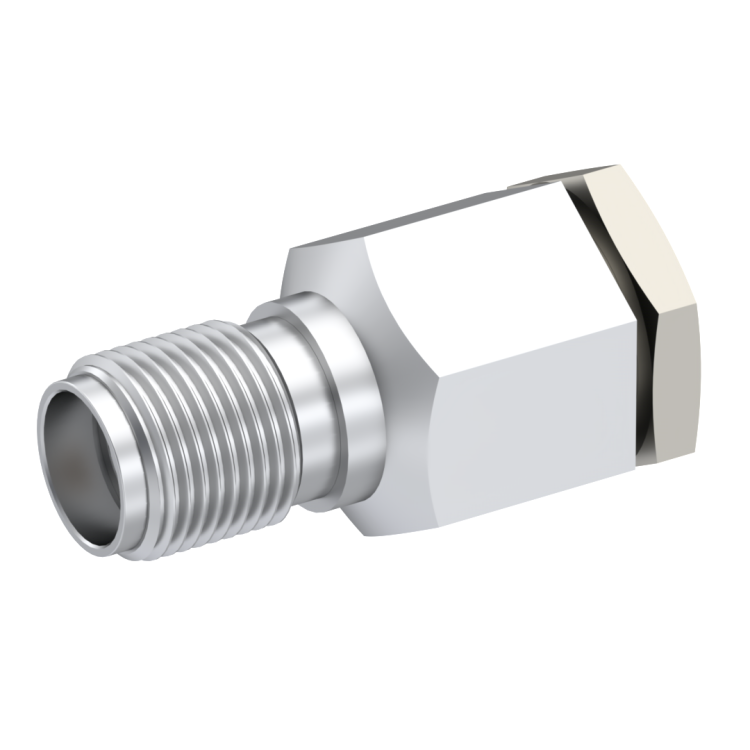

SMA / STRAIGHT JACK FEMALE SOLDER CLAMP FOR .085''/50 SR PASSIVATED CAPTIVE CONTACT
9502-9593-010 - Please contact Radiall for additional information
For REACH and RoHS status, click here for additional information.
9502-9593-010
Brand AEP
Product Type Connectors
Interface I SMA
Model CABLE CONNECTOR
Specific Feature CAPTIVE CONTACT
Max Frequency (GHz) 18
Impedance (Ohm) 50
Geometry STRAIGHT
Connector Type JACK
Gender 1 FEMALE
Cable Standard RG 405|M17/133
Cable Attachment SOLDER CLAMP
Cable Groups .085''/50 SR
Mating System SCREW-ON
Center Contact Plating GOLD PLATED PER MIL-G-45204
Body Plating PASSIVATED
