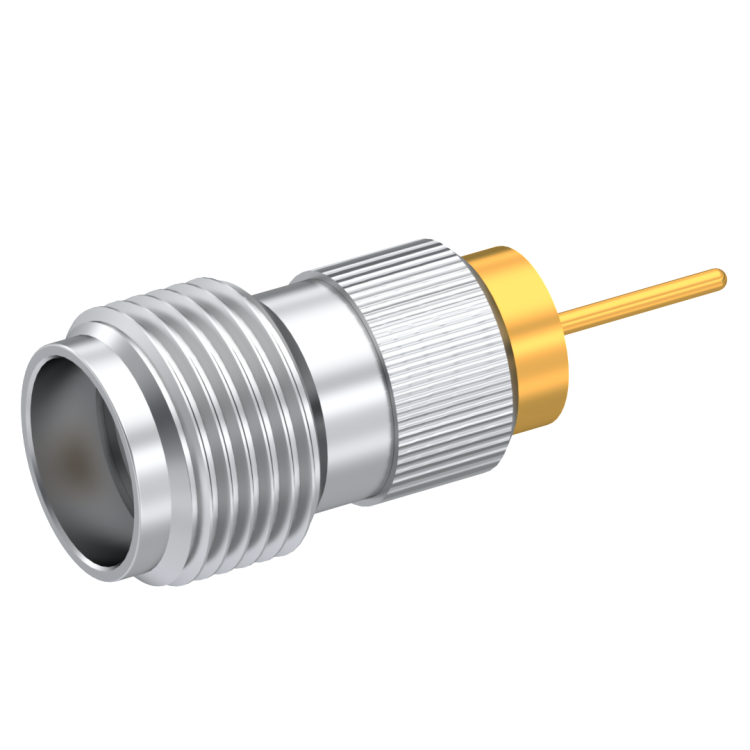

SMA / STRAIGHT JACK FEMALE PASSIVATED (INCLUDES 920-69)

9533-9113-002 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

SMA / STRAIGHT JACK FEMALE PASSIVATED (INCLUDES 920-69)

9533-9113-002

Brand AEP

Product Type Connectors

Interface I SMA

Model PANEL RECEPTACLE

Specific Feature GLASS SEAL, HERMETIC

Max Frequency (GHz) 18

Impedance (Ohm) 50

Geometry STRAIGHT

Panel Mounting KNURL MOUNT

Connector Type JACK

Gender 1 FEMALE

Mating System SCREW-ON

Center Contact Termination FEMALE SOCKET

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating PASSIVATED
