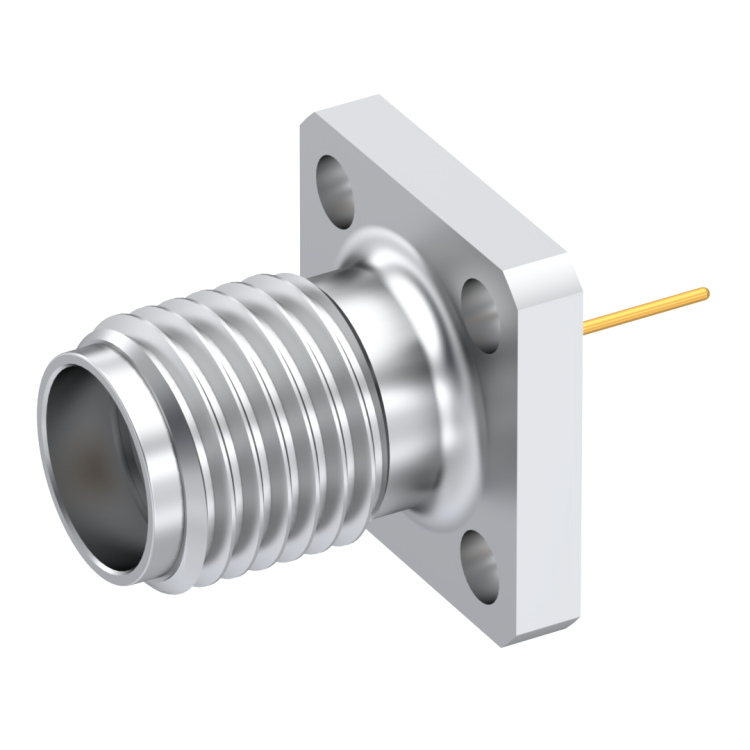

SMA / STRAIGHT JACK FEMALE PASSIVATED (INCLUDES 920-55)|3/8" FLANGE

9179-9513-000 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

SMA / STRAIGHT JACK FEMALE PASSIVATED (INCLUDES 920-55)|3/8" FLANGE

9179-9513-000

Brand AEP

Product Type Connectors

Interface I SMA

Model PANEL RECEPTACLE

Specific Feature GLASS SEAL, HERMETIC

Max Frequency (GHz) 18

Impedance (Ohm) 50

Geometry STRAIGHT

Connector Type JACK

Gender 1 FEMALE

Mating System SCREW-ON

Center Contact Termination FEMALE SOCKET

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating PASSIVATED
