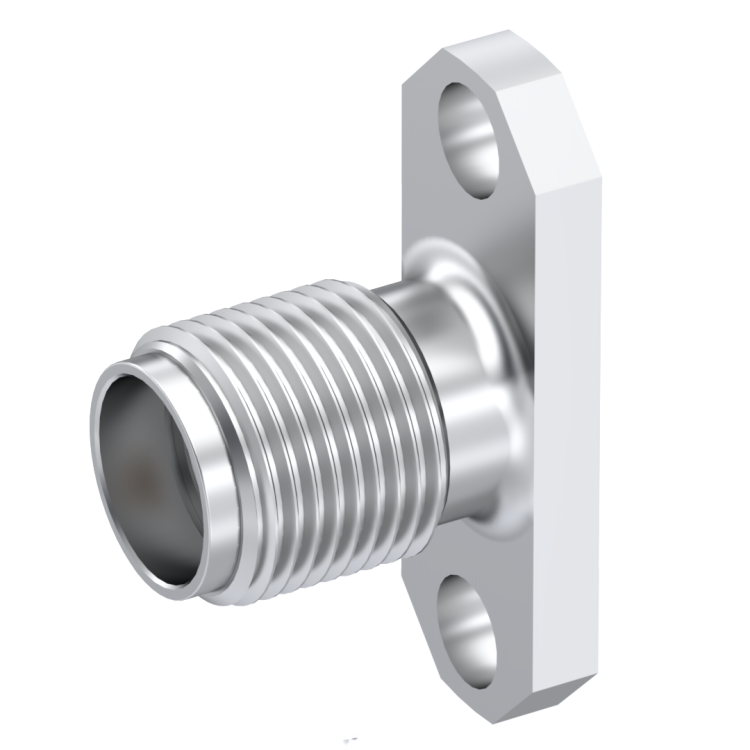

SMA / STRAIGHT JACK FEMALE PASSIVATED

9508-9113-001 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets Download
Datasheets
SMA / STRAIGHT JACK FEMALE PASSIVATED

9508-9113-001

Brand AEP

Product Type Connectors

Interface I SMA

Model HERMETIC SEAL LAUNCHER

Specific Feature HERMETIC

Max Frequency (GHz) 18

Impedance (Ohm) 50

Geometry STRAIGHT

Panel Mounting 2 HOLE FLANGE

Connector Type JACK

Gender 1 FEMALE

Mating System SCREW-ON

Center Contact Termination FEMALE SOCKET

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating PASSIVATED
