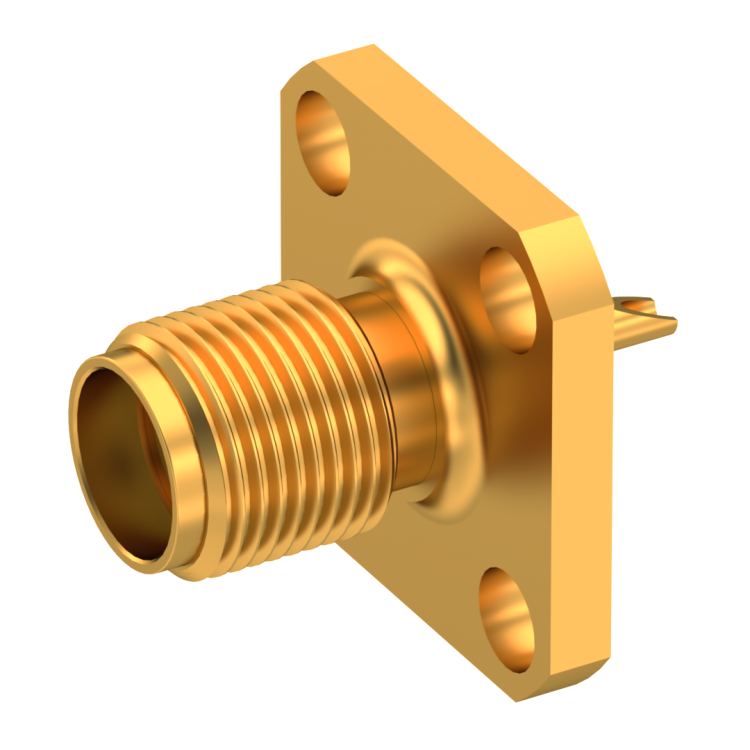

SMA / STRAIGHT JACK FEMALE GOLD CAPTIVE CONTACT

9408-1113-002

Brand: AEP

Product Type: Connectors

Interface I: SMA

Model: PANEL RECEPTACLE

Specific Feature: CAPTIVE CONTACT

Max Frequency (GHz): 18

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: 2 HOLE FLANGE

Connector Type: JACK

Gender 1: FEMALE

Mating System: SCREW-ON

Center Contact Termination: SOLDER POT

Center Contact Plating: GOLD PLATED PER MIL-G-45204

Body Plating: GOLD

OR
SMA / STRAIGHT JACK FEMALE GOLD CAPTIVE CONTACT

9408-1113-002 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
