SMA / STRAIGHT JACK FEMALE CRIMP TYPE FOR 2/50 S CABLE GOLD NON-CAPTIVE CONTACT

9002-1023-002 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Click here to check for distribution inventory

Datasheets Download
Datasheets
Cabling Instructions

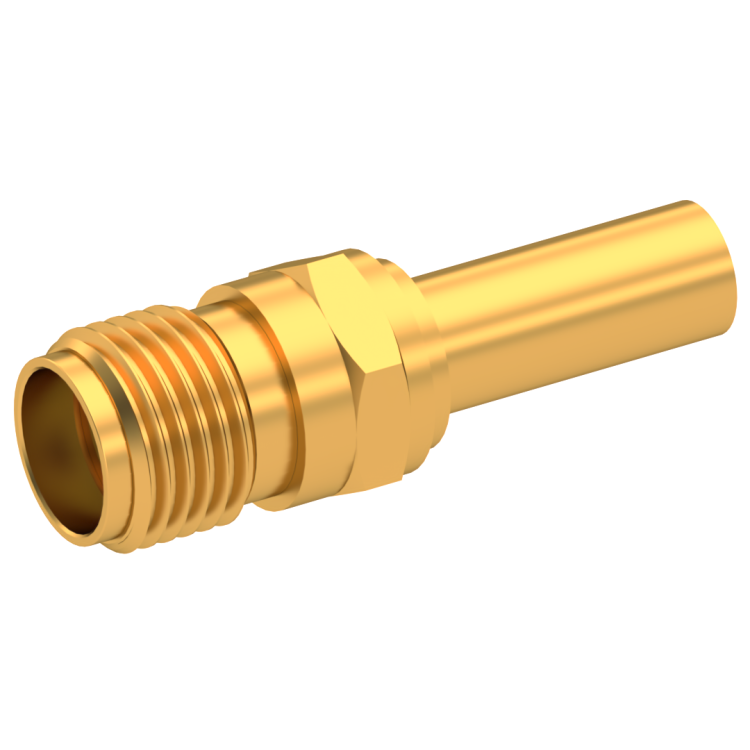

SMA / STRAIGHT JACK FEMALE CRIMP TYPE FOR 2/50 S CABLE GOLD NON-CAPTIVE CONTACT

9002-1023-002

Brand AEP

Product Type Connectors

Interface I SMA

Model CABLE CONNECTOR

Specific Feature NON-CAPTIVE CONTACT

Max Frequency (GHz) 18

Impedance (Ohm) 50

Geometry STRAIGHT

Connector Type JACK

Gender 1 FEMALE

Cable Standard RG 178|RG 196|M17/93|M17/169

Cable Attachment CRIMP TYPE

Cable Groups 2/50 S

Mating System SCREW-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating GOLD
