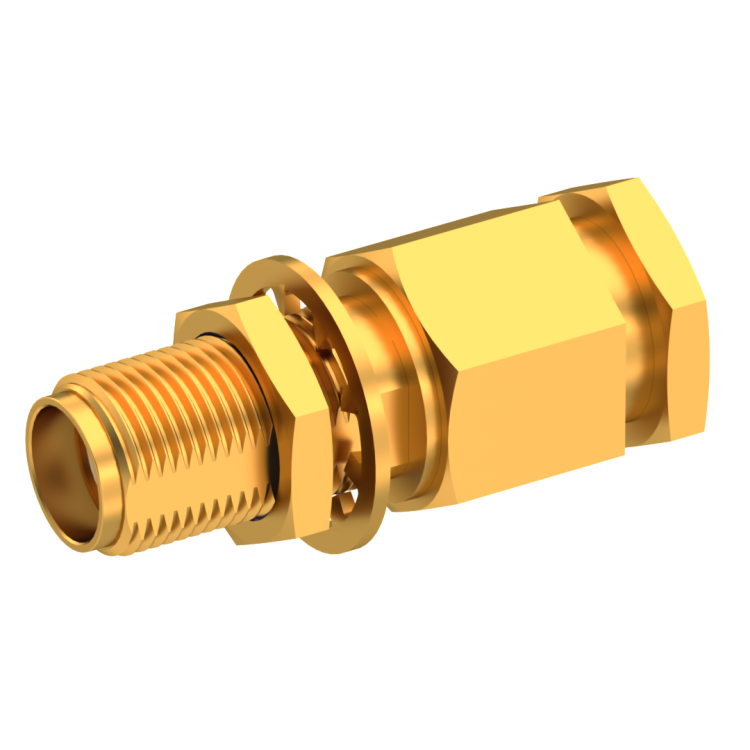

SMA / STRAIGHT JACK FEMALE CLAMP TYPE FOR 3.8/95 S GOLD CAPTIVE CONTACT

9230-1553-004

Brand: AEP

Product Type: Connectors

Interface I: SMA

Model: CABLE CONNECTOR

Specific Feature: CAPTIVE CONTACT

Max Frequency (GHz): 18

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: BULKHEAD

Connector Type: JACK

Gender 1: FEMALE

Cable Standard: RG 180|RG 195|M17/95

Cable Attachment: CLAMP TYPE

Cable Groups: 3.8/95 S

Mating System: SCREW-ON

Center Contact Plating: GOLD PLATED PER MIL-G-45204

Body Plating: GOLD

OR
SMA / STRAIGHT JACK FEMALE CLAMP TYPE FOR 3.8/95 S GOLD CAPTIVE CONTACT

9230-1553-004 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
