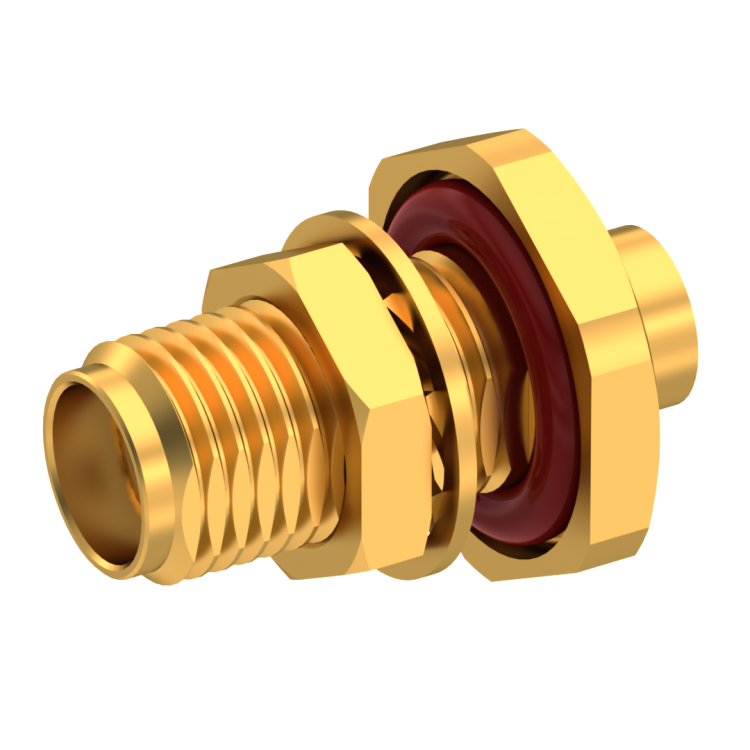

SMA / STRAIGHT BULKHEAD JACK PANEL SEAL SOLDER TYPE - CABLE .141
R125325000 - Please contact Radiall for additional information
For REACH and RoHS status, click here for additional information.
R125325000
Brand RADIALL
Product Type Connectors
Interface I SMA
Model CABLE CONNECTOR
Specific Feature PANEL SEALED
Max Frequency (GHz) 18
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting BULKHEAD
Connector Type JACK
Gender 1 FEMALE
Cable Standard KS 2, RG 402
Cable Attachment SOLDER TYPE
Cable Groups .141''/50 SR
Mating System SCREW-ON
Center Contact Plating GOLD 1.3 OVER NICKEL 2
Body Plating GOLD 0.5 OVER NICKEL 2
