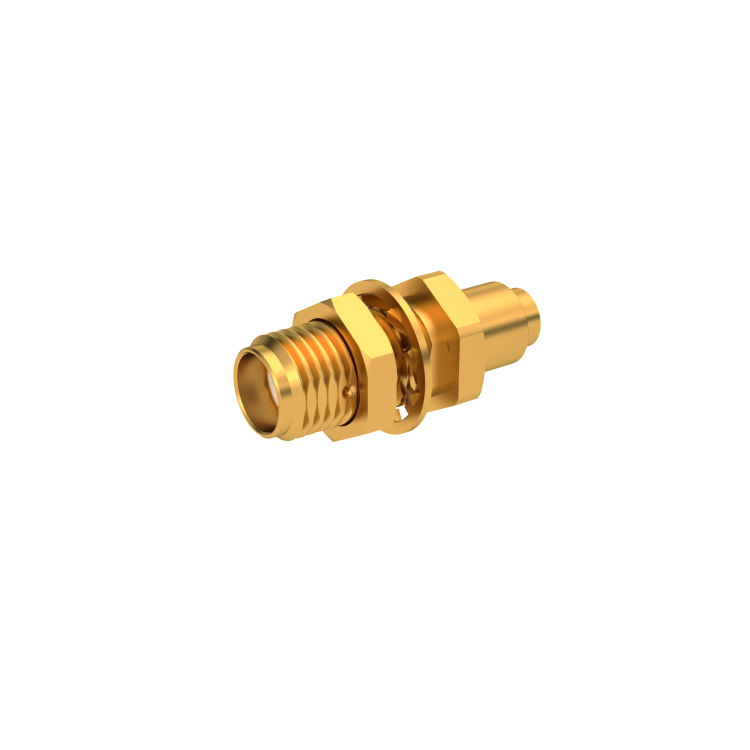

SMA / STRAIGHT BULKHEAD JACK INVERSED CRIMP CABLE 2/50 S
R124310023 - Please contact Radiall for additional information
This part is RoHS Compliant, click here for more details.
Click here to check for distribution inventory
R124310023
Brand RADIALL
Product Type Connectors
Interface I SMA
Model CABLE CONNECTOR
Max Frequency (GHz) 12.4
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting BULKHEAD
Connector Type JACK
Gender 1 FEMALE
Cable Standard KX 21, RG 178, RG 196
Cable Attachment CRIMP TYPE, FULL CRIMP TYPE
Cable Groups 2/50 S
Mating System SCREW-ON
Center Contact Plating GOLD 1.3 OVER COPPER 2.5
Body Plating GOLD 0.2 OVER NICKEL 2
