SMA / STRAIGHT BULKHEAD JACK INVERSED CRIMP CABLE 2/50 S

R124310020 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
3D.IGS

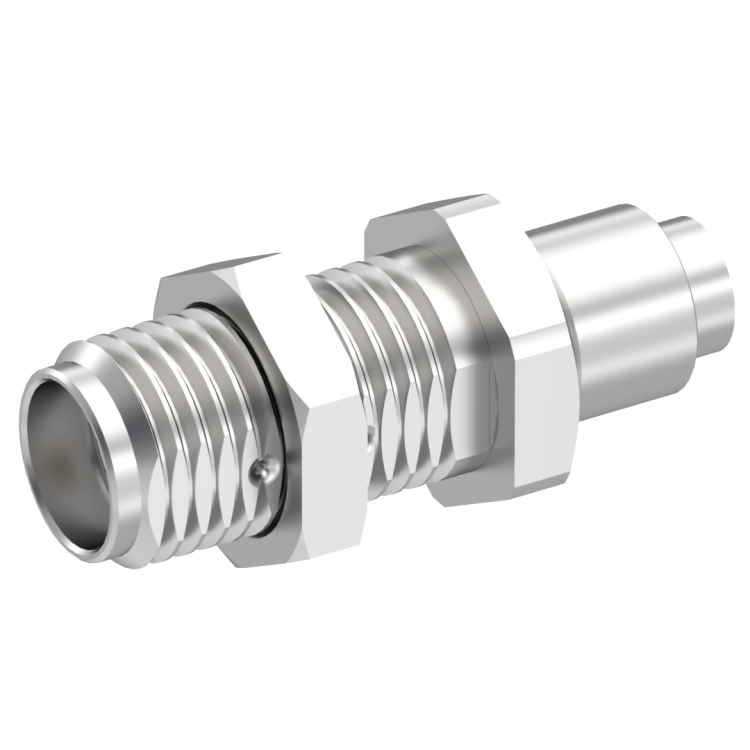

SMA / STRAIGHT BULKHEAD JACK INVERSED CRIMP CABLE 2/50 S

R124310020

Brand RADIALL

Product Type Connectors

Interface I SMA

Model CABLE CONNECTOR

Max Frequency (GHz) 12.4

Impedance (Ohm) 50

Geometry STRAIGHT

Panel Mounting BULKHEAD

Connector Type JACK

Gender 1 FEMALE

Cable Standard KX 21, RG 178, RG 196

Cable Attachment CRIMP TYPE, FULL CRIMP TYPE

Cable Groups 2/50 S

Mating System SCREW-ON

Center Contact Plating GOLD 1.3 OVER COPPER 2.5

Body Plating BBR
