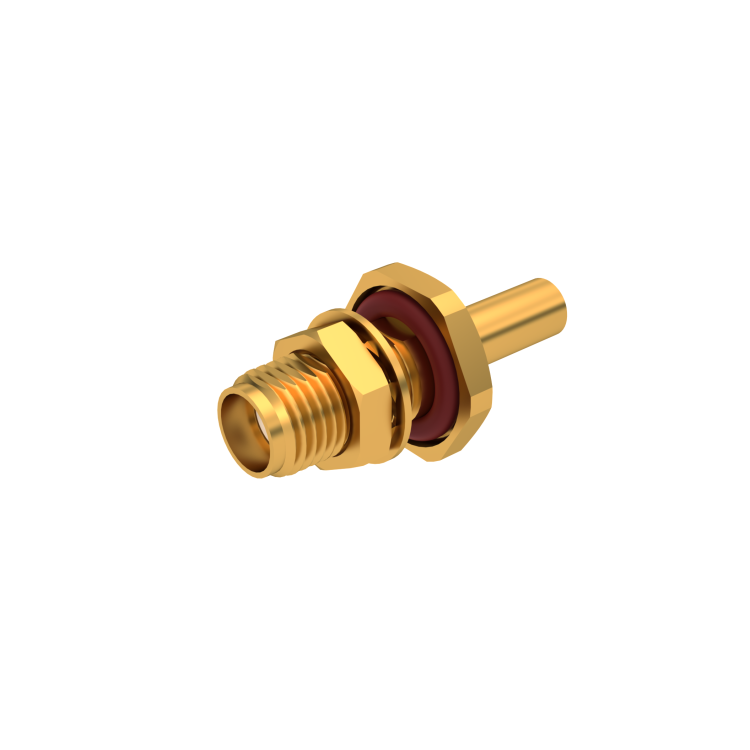

SMA / STRAIGHT BULKHEAD JACK COMBINATION SEAL CRIMP TYPE - CABLE 2.6/50 S
R125321020 - Please contact Radiall for additional information
This part is RoHS Compliant, click here for more details.
R125321020
Brand RADIALL
Product Type Connectors
Interface I SMA
Model CABLE CONNECTOR
Specific Feature PANEL SEALED, WATERPROOF
Max Frequency (GHz) 12.4
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting BULKHEAD
Connector Type JACK
Gender 1 FEMALE
Cable Standard KX 22A, RG 188, RG 316
Cable Attachment CRIMP TYPE
Cable Groups 2.6/50 S
Mating System SCREW-ON
Center Contact Plating GOLD 2.5 OVER COPPER 2.5
Body Plating GOLD 0.5 OVER NICKEL 2
