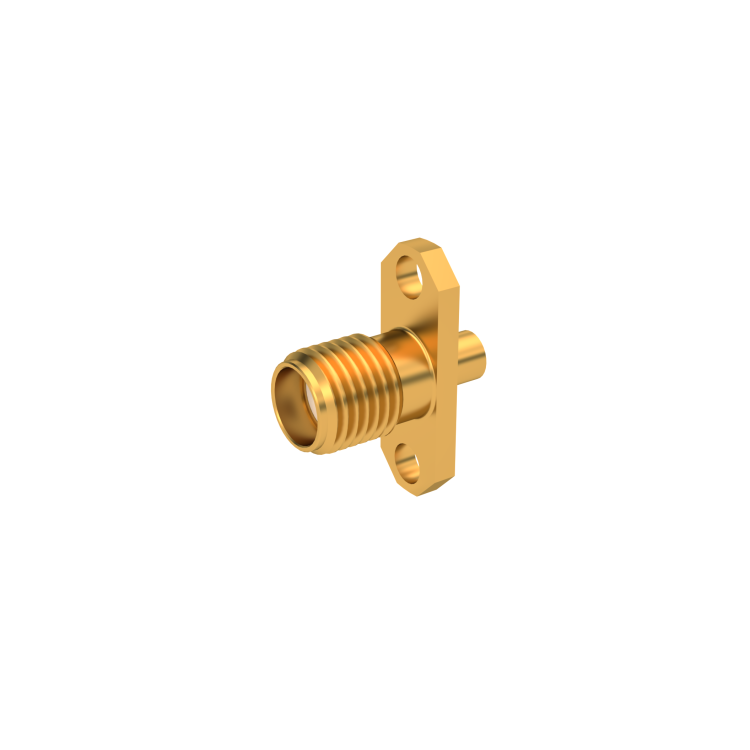

SMA / STRAIGHT 2 HOLE FLANGE JACK SOLDER TYPE CABLE .085
R124252003 - Please contact Radiall for additional information
This part is RoHS Compliant, click here for more details.
R124252003
Brand RADIALL
Product Type Connectors
Interface I SMA
Model CABLE CONNECTOR
Max Frequency (GHz) 18
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting 2 HOLE FLANGE
Connector Type JACK
Gender 1 FEMALE
Cable Standard KS 1, RG 405
Cable Attachment SOLDER TYPE
Cable Groups .085''/50 SR
Mating System SCREW-ON
Center Contact Plating GOLD 1.3 OVER COPPER 2.5
Body Plating GOLD 0.2 OVER NICKEL 2
