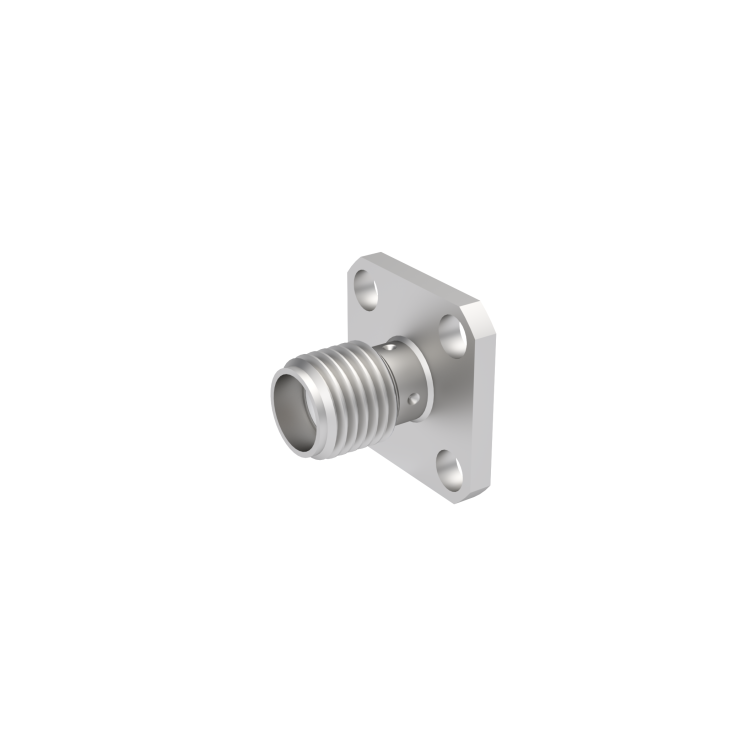

SMA / SQUARE FLANGE JACK RECEPTACLE WITH TAB CONTACT

R124510000

Brand: RADIALL

Product Type: Connectors

Interface I: SMA

Model: PANEL RECEPTACLE

Max Frequency (GHz): 18

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: 4 HOLE FLANGE

Connector Type: JACK

Gender 1: FEMALE

Mating System: SCREW-ON

Center Contact Termination: TAB

Center Contact Plating: GOLD 1.3 OVER COPPER 2.5

Body Plating: BBR

Click here to check availability
OR
SMA / SQUARE FLANGE JACK RECEPTACLE WITH TAB CONTACT

R124510000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
3D.IGS
3D.STEP
