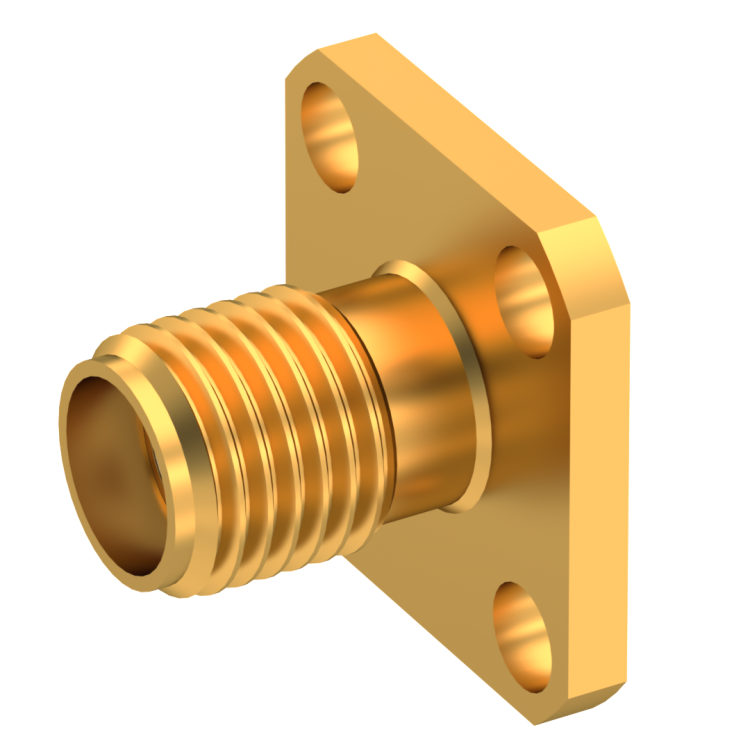

SMA / SQUARE FLANGE JACK RECEPTACLE WITH EMI GASKET FOR PIN 0.3MM
R125941000 - Please contact Radiall for additional information
For REACH and RoHS status, click here for additional information.
R125941000
Brand RADIALL
Product Type Connectors
Interface I SMA
Model PANEL RECEPTACLE
Specific Feature EMI GASKET, HERMETIC
Max Frequency (GHz) 18
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting 4 HOLE FLANGE
Connector Type JACK
Gender 1 FEMALE
Mating System SCREW-ON
Center Contact Termination AUXILLIARY CONTACT
Center Contact Plating GOLD 1.3 OVER NICKEL 2
Body Plating GOLD 0.5 OVER NICKEL 2
