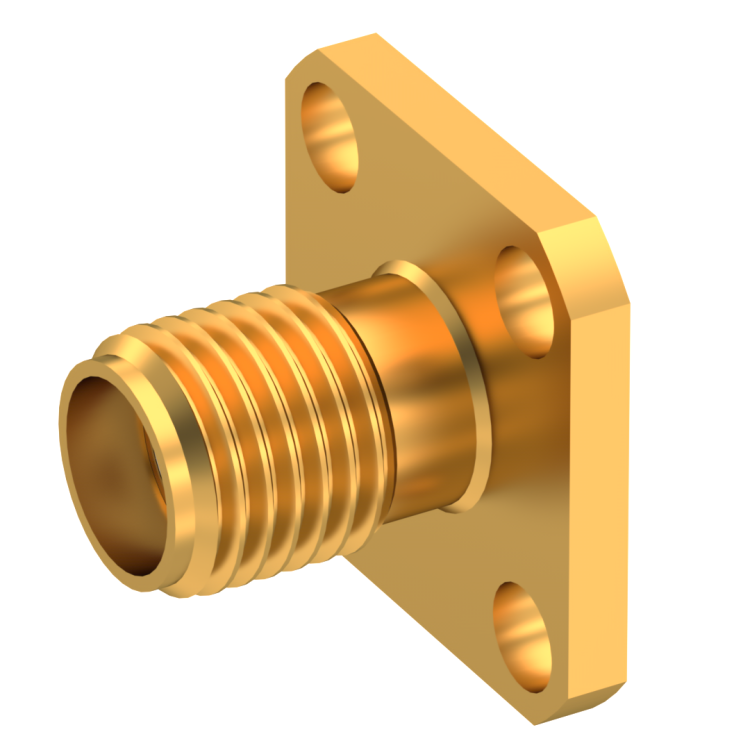

SMA / SQUARE FLANGE JACK RECEPT. FOR 0.011 DIA WITH EMI GASKET + GLASS BEAD
R125411400 - Please contact Radiall for additional information
For REACH and RoHS status, click here for additional information.
R125411400
Brand RADIALL
Product Type Connectors
Interface I SMA
Model HERMETIC SEAL LAUNCHER
Specific Feature EMI GASKET, GLASS SEAL, HERMETIC
Max Frequency (GHz) 18
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting 4 HOLE FLANGE
Connector Type JACK
Gender 1 FEMALE
Mating System SCREW-ON
Center Contact Termination FEMALE SOCKET
Center Contact Plating GOLD 1.3 OVER NICKEL 2
Body Plating GOLD 0.5 OVER NICKEL 2
