SMA / SMA STRAIGHT JACK/PLUG FEMALE/MALE PASSIVATED

5916-9103-603 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

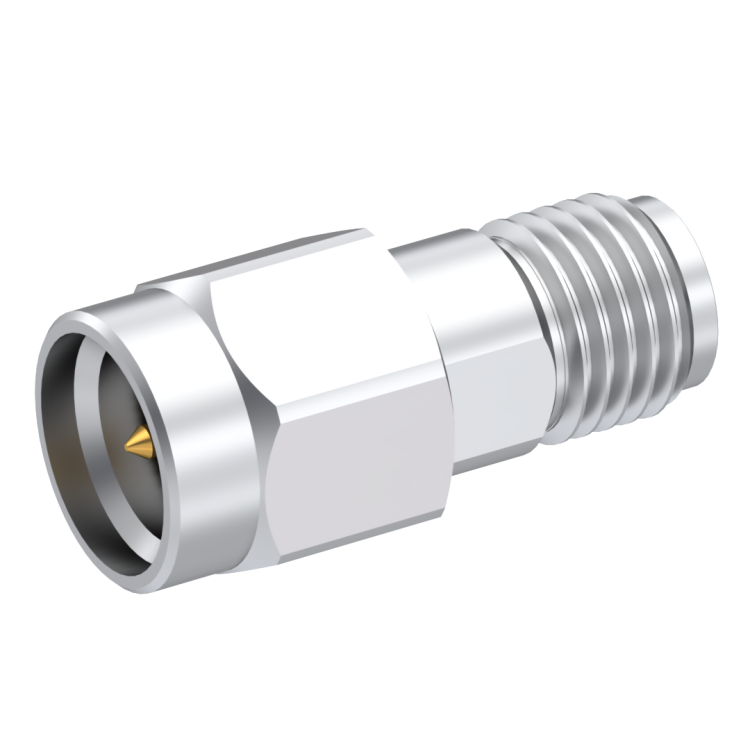

SMA / SMA STRAIGHT JACK/PLUG FEMALE/MALE PASSIVATED

5916-9103-603

Brand AEP

Product Type Adapters

Interface I SMA

Interface II SMA

Specific Feature CAPTIVE CONTACT

Max Frequency (GHz) 18

Impedance (Ohm) 50

Geometry STRAIGHT

Connector Type JACK/PLUG

Gender 1 FEMALE

Gender 2 MALE

Mating System SCREW-ON

Mating System 2 SCREW-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating PASSIVATED

Click here to check availability
