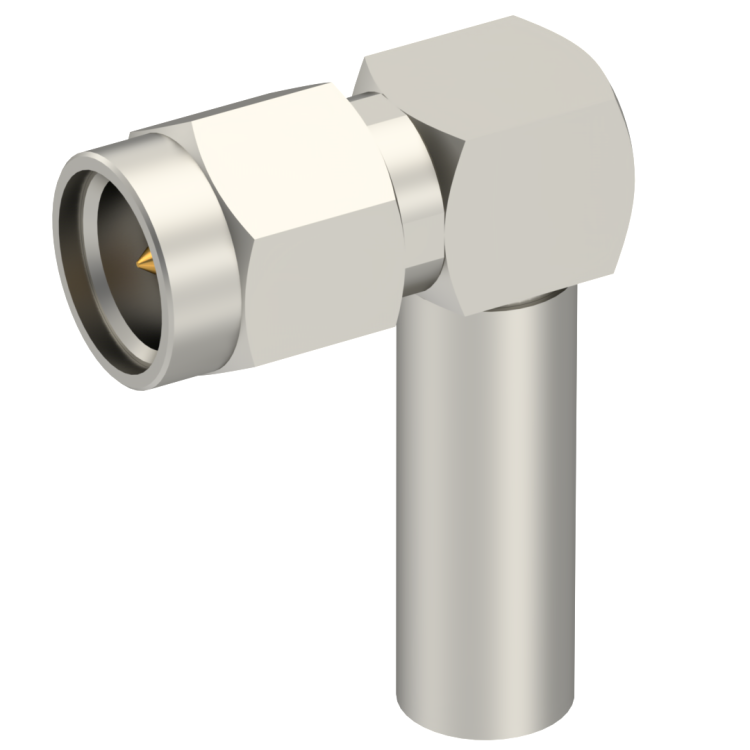

SMA / RIGHT ANGLE PLUG MALE SOLDER TYPE FOR 2.6/50 S CABLE NICKEL

9043-7533-003 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets Download
Datasheets
Cabling Instructions
SMA / RIGHT ANGLE PLUG MALE SOLDER TYPE FOR 2.6/50 S CABLE NICKEL

9043-7533-003

Brand AEP

Product Type Connectors

Interface I SMA

Model CABLE CONNECTOR

Max Frequency (GHz) 18

Impedance (Ohm) 50

Geometry RIGHT ANGLE

Connector Type PLUG

Gender 1 MALE

Cable Standard RG 174|RG 179|RG 316|M17/113|M17/119|M17/172|M17/173

Cable Attachment SOLDER TYPE

Cable Groups 2.6/50 S

Mating System SCREW-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating NICKEL

Click here to check availability
