SMA / RIGHT ANGLE PLUG MALE CRIMP TYPE FOR 5/50 D PASSIVATED CAPTIVE CONTACT

9043-9523-001 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

Datasheets Download
Datasheets
Cabling Instructions

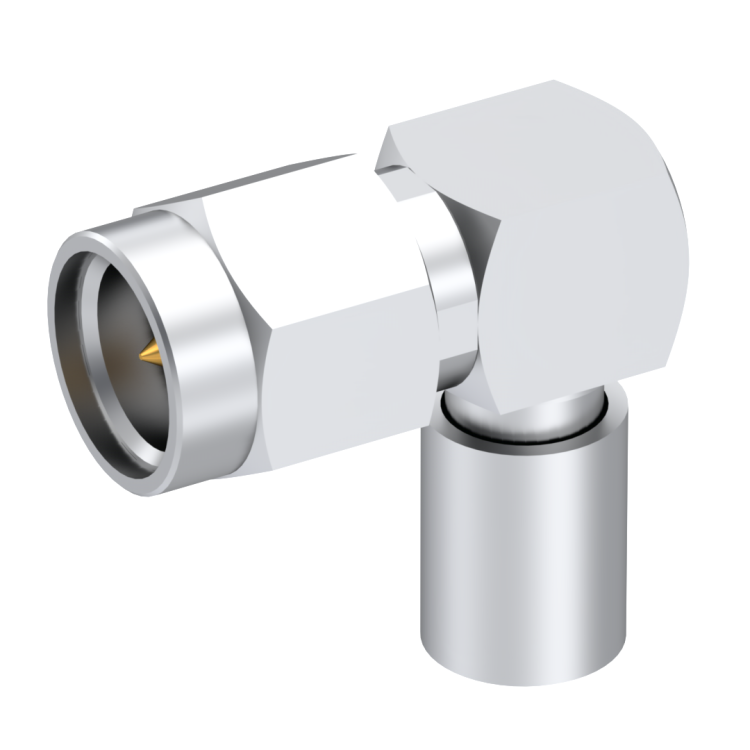

SMA / RIGHT ANGLE PLUG MALE CRIMP TYPE FOR 5/50 D PASSIVATED CAPTIVE CONTACT

9043-9523-001

Brand AEP

Product Type Connectors

Interface I SMA

Model CABLE CONNECTOR

Specific Feature CAPTIVE CONTACT

Max Frequency (GHz) 18

Impedance (Ohm) 50

Geometry RIGHT ANGLE

Connector Type PLUG

Gender 1 MALE

Cable Standard RG 142|RG 223|RG 400|M17/60|M17/84|M17/158

Cable Attachment CRIMP TYPE

Cable Groups 5/50 D

Mating System SCREW-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating PASSIVATED
