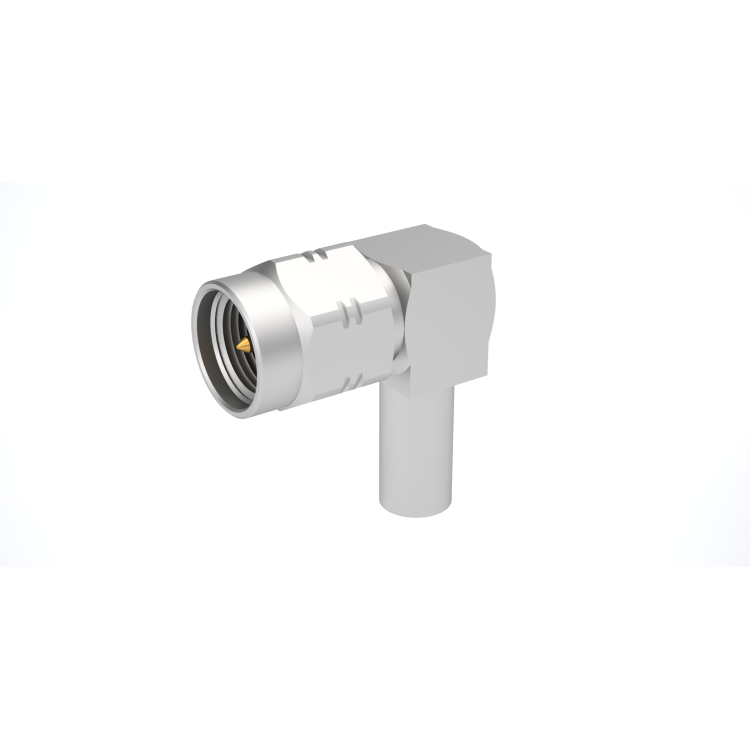

SMA / RIGHT ANGLE PLUG CRIMP TYPE CABLE 2.6/50 D

R124174120

Brand: RADIALL

Product Type: Connectors

Interface I: SMA

Model: CABLE CONNECTOR

Max Frequency (GHz): 12.4

Impedance (Ohm): 50

Geometry: RIGHT ANGLE

Connector Type: PLUG

Gender 1: MALE

Cable Standard: K02252D, RD 316

Cable Attachment: CRIMP TYPE

Cable Groups: 2.6/50 D

Mating System: SCREW-ON

Center Contact Plating: GOLD 1.3 OVER COPPER 2.5

Body Plating: BBR

OR
SMA / RIGHT ANGLE PLUG CRIMP TYPE CABLE 2.6/50 D

R124174120 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
3D.IGS
3D.STEP
