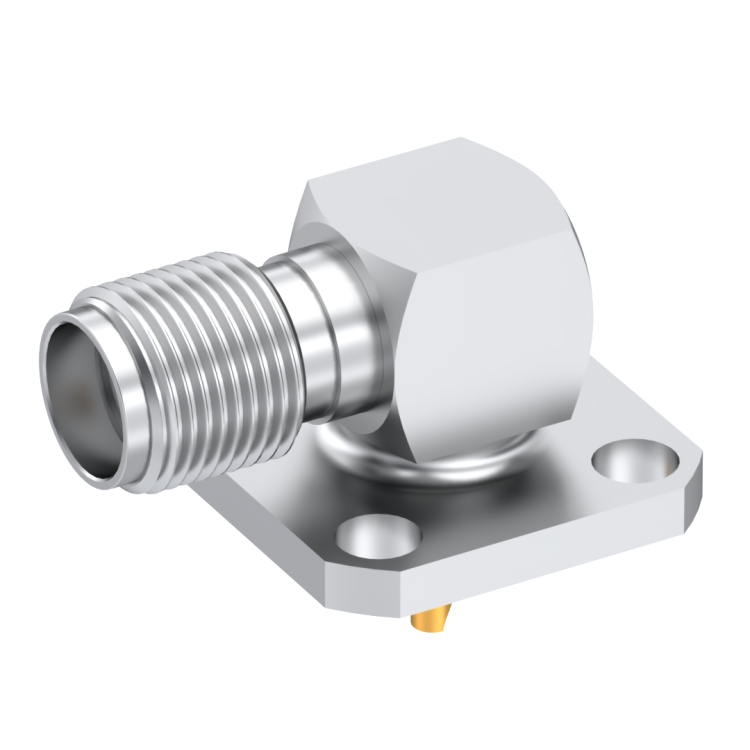

SMA / RIGHT ANGLE JACK RECEPTACLE FEMALE PASSIVATED LOW PROFILE
9425-9513-000 - Please contact Radiall for additional information
For REACH and RoHS status, click here for additional information.
9425-9513-000
Brand AEP
Product Type Connectors
Interface I SMA
Model PANEL RECEPTACLE
Max Frequency (GHz) 18
Impedance (Ohm) 50
Geometry RIGHT ANGLE
Connector Type JACK
Gender 1 FEMALE
Mating System SCREW-ON
Center Contact Termination SOLDER POT
Center Contact Plating GOLD PLATED PER MIL-G-45204
Body Plating PASSIVATED
