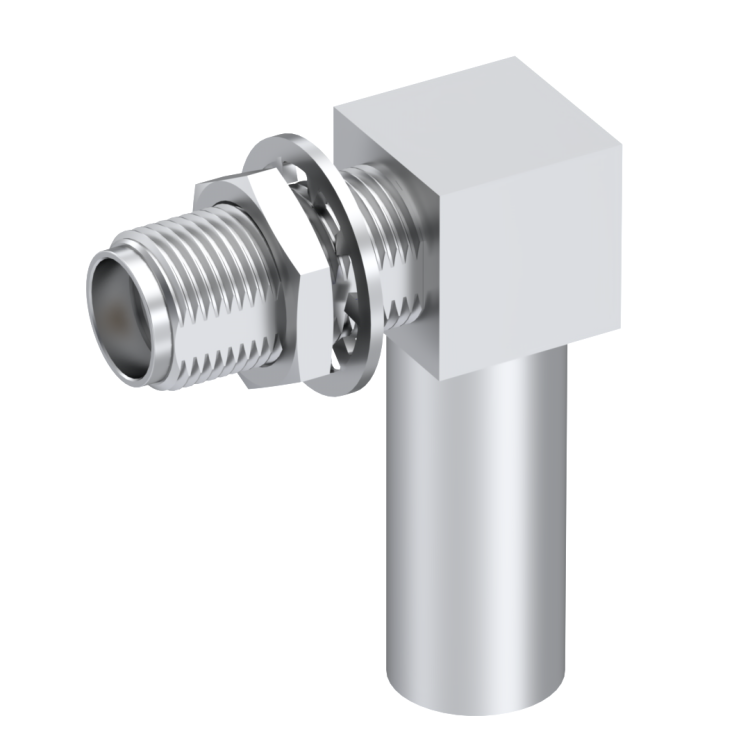

SMA / RIGHT ANGLE JACK FEMALE CRIMP TYPE FOR 5/50 S PASSIVATED

9613-9523-006

Brand: AEP

Product Type: Connectors

Interface I: SMA

Model: CABLE CONNECTOR

Max Frequency (GHz): 18

Impedance (Ohm): 50

Geometry: RIGHT ANGLE

Panel Mounting: BULKHEAD

Connector Type: JACK

Gender 1: FEMALE

Cable Standard: RG 58|RG 141|M17/111|M17/155

Cable Attachment: CRIMP TYPE

Cable Groups: 5/50 S

Mating System: SCREW-ON

Center Contact Plating: GOLD PLATED PER MIL-G-45204

Body Plating: PASSIVATED

OR
SMA / RIGHT ANGLE JACK FEMALE CRIMP TYPE FOR 5/50 S PASSIVATED

9613-9523-006 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information
