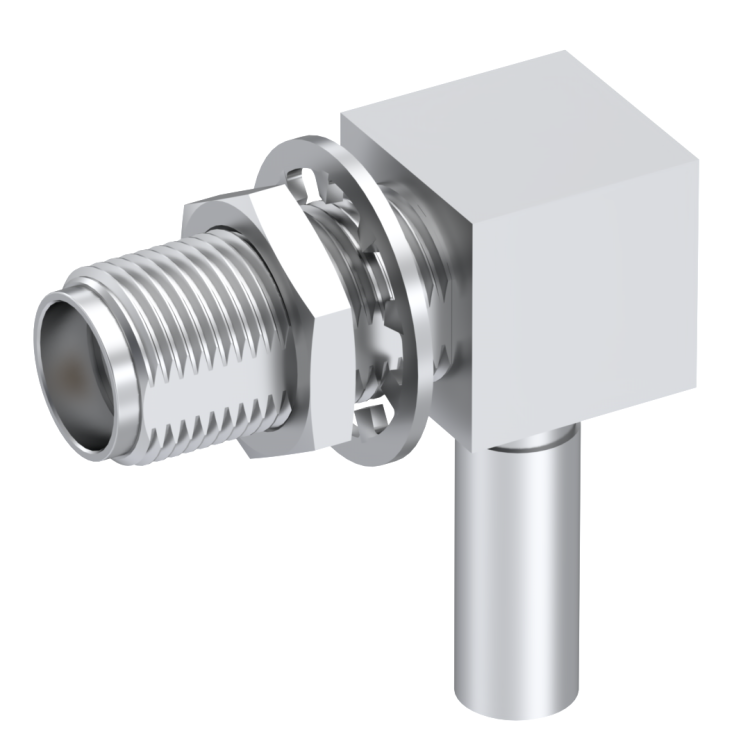

SMA / RIGHT ANGLE JACK FEMALE CRIMP TYPE FOR 2/50 D CABLE PASSIVATED
9613-9523-005 - Please contact Radiall for additional information
For REACH and RoHS status, click here for additional information.
9613-9523-005
Brand AEP
Product Type Connectors
Interface I SMA
Model CABLE CONNECTOR
Max Frequency (GHz) 18
Impedance (Ohm) 50
Geometry RIGHT ANGLE
Panel Mounting BULKHEAD
Connector Type JACK
Gender 1 FEMALE
Cable Standard RD 178|RG 178DS|RG 196DS
Cable Attachment CRIMP TYPE
Cable Groups 2/50 D
Mating System SCREW-ON
Center Contact Plating GOLD PLATED PER MIL-G-45204
Body Plating PASSIVATED
