SMA / FEMALE-FEMALE BULKHEAD ADAPTER

R124720000 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets Download
Datasheets
3D.IGS

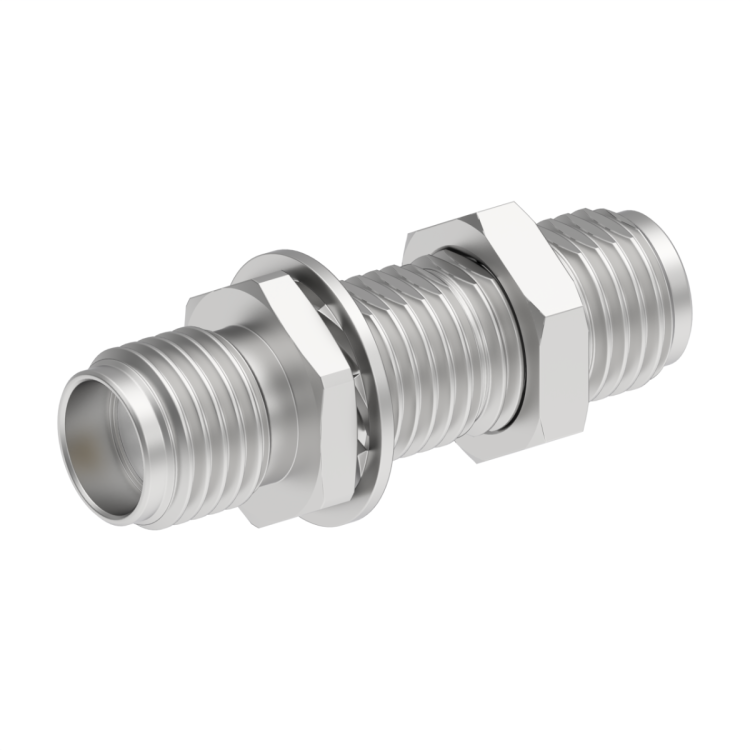

SMA / FEMALE-FEMALE BULKHEAD ADAPTER

R124720000

Brand RADIALL

Product Type Adapters

Interface I SMA

Interface II SMA

Max Frequency (GHz) 18

Impedance (Ohm) 50

Geometry STRAIGHT

Panel Mounting BULKHEAD

Connector Type JACK/JACK

Gender 1 FEMALE

Gender 2 FEMALE

Mating System SCREW-ON

Mating System 2 SCREW-ON

Center Contact Plating GOLD 1.3 OVER COPPER 2.5

Body Plating BBR

Click here to check availability
