SMA / BULKHEAD JACK RECEPTACLE WITH SOLDER POT CONTACT

R125553001 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets Download
3D.IGS
3D.STEP

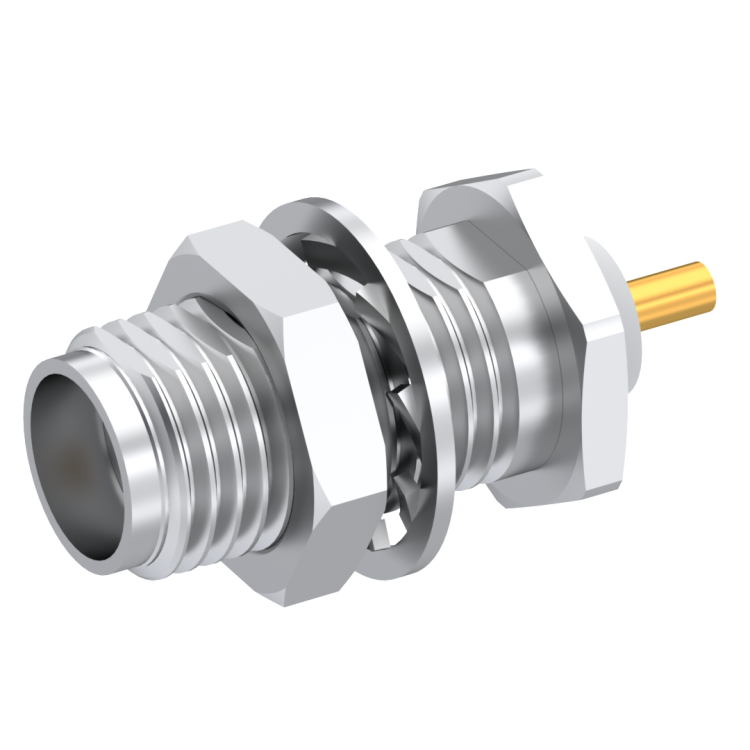

SMA / BULKHEAD JACK RECEPTACLE WITH SOLDER POT CONTACT

R125553001

Brand RADIALL

Product Type Connectors

Interface I SMA

Model PANEL RECEPTACLE

Max Frequency (GHz) 18

Impedance (Ohm) 50

Geometry STRAIGHT

Panel Mounting BULKHEAD

Connector Type JACK

Gender 1 FEMALE

Mating System SCREW-ON

Center Contact Termination SOLDER POT

Center Contact Plating GOLD OVER NICKEL

Body Plating PASSIVATED
