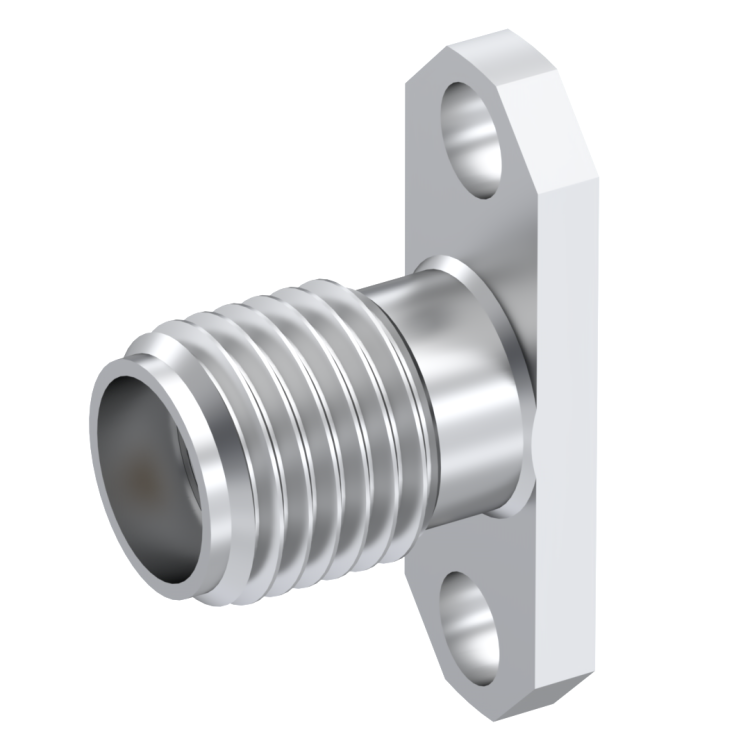

SMA / 2 HOLE FLANGE JACK RECEPTACLE WITH EMI GASKET FOR PIN 0.5MM

R125465011

Brand: RADIALL

Product Type: Connectors

Interface I: SMA

Model: PANEL RECEPTACLE

Specific Feature: EMI GASKET

Max Frequency (GHz): 18

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: 2 HOLE FLANGE

Connector Type: JACK

Gender 1: FEMALE

Mating System: SCREW-ON

Center Contact Termination: AUXILLIARY CONTACT

Center Contact Plating: GOLD 1.3 OVER NICKEL 2

Body Plating: PASSIVATED

Click here to check availability
OR
SMA / 2 HOLE FLANGE JACK RECEPTACLE WITH EMI GASKET FOR PIN 0.5MM

R125465011 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
3D.IGS
3D.STEP
