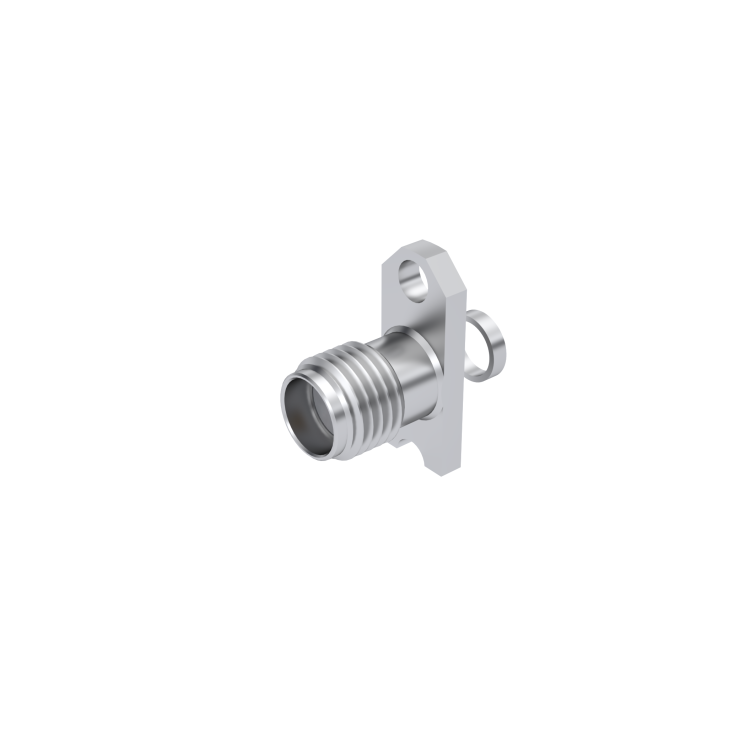

SMA / 2 HOLE FLANGE JACK RECEPTACLE WITH EMI GASKET - FOR 0.011 DIA
R125967001 - Please contact Radiall for additional information
This part is RoHS Compliant, click here for more details.
R125967001
Brand RADIALL
Product Type Connectors
Interface I SMA
Model PANEL RECEPTACLE
Specific Feature EMI GASKET, HERMETIC
Max Frequency (GHz) 18
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting 2 HOLE FLANGE
Connector Type JACK
Gender 1 FEMALE
Mating System SCREW-ON
Center Contact Termination AUXILLIARY CONTACT
Center Contact Plating GOLD 1.3 OVER NICKEL 2
Body Plating PASSIVATED
