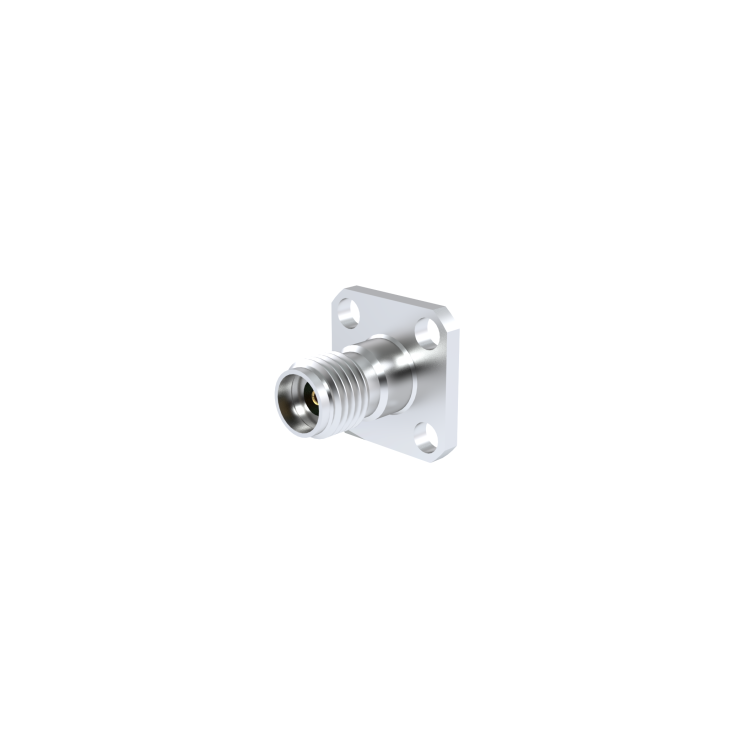

SMA 2.9 / SQUARE FLANGE FEMALE RECEPTACLE PANEL SEALED FOR PIN 0.3MM WITH EMI GASKET
R127842101 - Please contact Radiall for additional information
For REACH and RoHS status, click here for additional information.
R127842101
Brand RADIALL
Product Type Connectors
Interface I SMA 2.9 (K)
Model HERMETIC SEAL LAUNCHER
Specific Feature EMI GASKET, HERMETIC, PANEL SEALED
Max Frequency (GHz) 40
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting 4 HOLE FLANGE
Connector Type JACK
Gender 1 FEMALE
Mating System SCREW-ON
Center Contact Termination FEMALE SOCKET
Center Contact Plating GOLD 1.3 OVER NICKEL 2
Body Plating PASSIVATED
