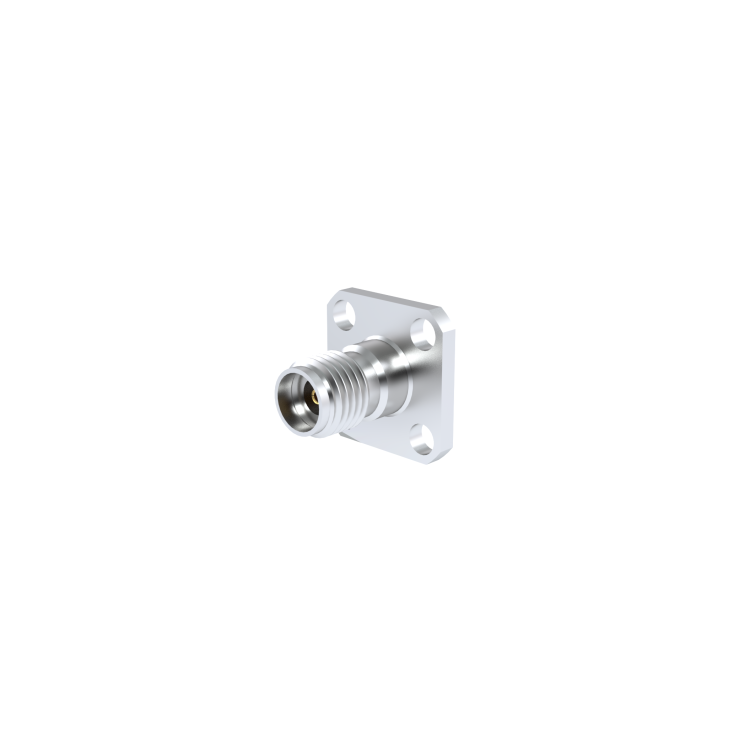

SMA 2.9 / SQUARE FLANGE FEMALE RECEPTACLE FOR PIN 0.3MM
R127842001 - Please contact Radiall for additional information
This part is RoHS Compliant, click here for more details.
R127842001
Brand RADIALL
Product Type Connectors
Interface I SMA 2.9 (K)
Model PANEL RECEPTACLE
Specific Feature HERMETIC
Max Frequency (GHz) 40
Impedance (Ohm) 50
Geometry STRAIGHT
Panel Mounting 4 HOLE FLANGE
Connector Type JACK
Gender 1 FEMALE
Mating System SCREW-ON
Center Contact Termination AUXILLIARY CONTACT
Center Contact Plating GOLD 1.3 OVER NICKEL 2
Body Plating PASSIVATED
