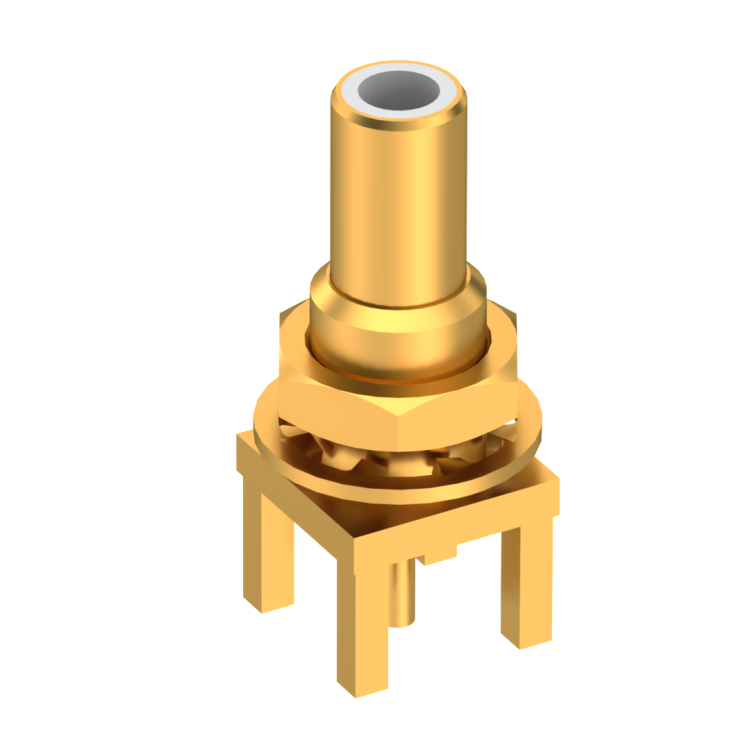

SLB / STRAIGHT JACK RECEPTACLE MALE GOLD

3109-1511-000 - Please contact Radiall for additional information

For REACH and RoHS status, click here for additional information.

SLB / STRAIGHT JACK RECEPTACLE MALE GOLD

3109-1511-000

Brand AEP

Product Type Connectors

Interface I SLB

Model PCB RECEPTACLE

Max Frequency (GHz) 4

Impedance (Ohm) 50

Geometry STRAIGHT

Panel Mounting BULKHEAD

PCB Mounting SOLDER LEGS

Connector Type JACK

Gender 1 MALE

Mating System SLIDE-ON

Center Contact Plating GOLD PLATED PER MIL-G-45204

Body Plating GOLD
