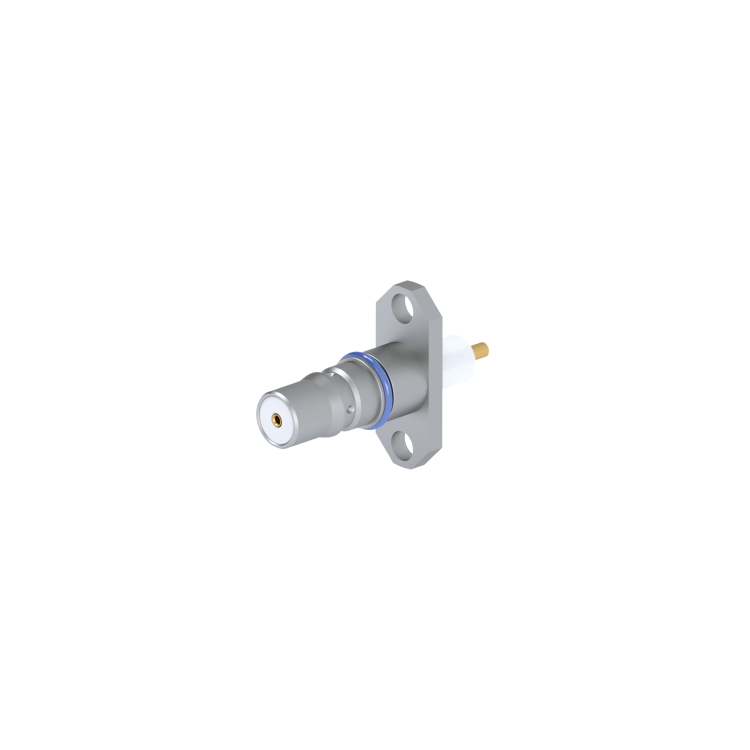

QRE / NARROW FLANGE RECEPTACLE WITH CYLINDRICAL PIN

R324474L00

Brand: RADIALL

Product Type: Connectors

Interface I: QRE

Model: PANEL RECEPTACLE

Max Frequency (GHz): 12.4

Impedance (Ohm): 50

Geometry: STRAIGHT

Panel Mounting: 2 HOLE FLANGE

Connector Type: JACK

Gender 1: FEMALE

Mating System: QUICK-LOCK

Center Contact Termination: CYLINDRICAL

Center Contact Plating: GOLD 2.5 OVER NICKEL 2

Body Plating: PASSIVATED

OR
QRE / NARROW FLANGE RECEPTACLE WITH CYLINDRICAL PIN

R324474L00 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
3D.IGS
3D.STEP
