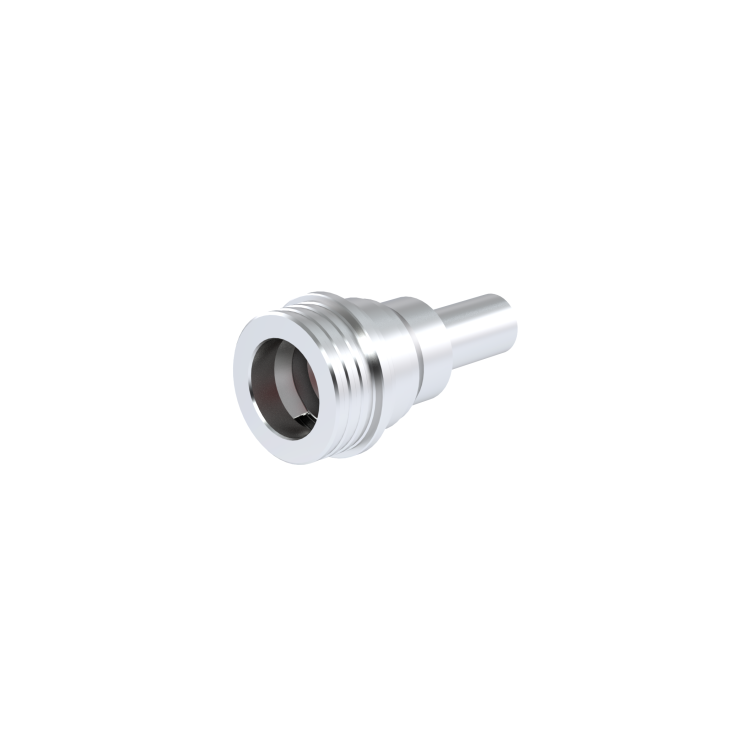

QN / STRAIGHT PLUG FULL CRIMP TYPE CABLE 6.1/50 S

R164075010

Brand: RADIALL

Product Type: Connectors

Interface I: QN

Model: CABLE CONNECTOR

Max Frequency (GHz): 6

Impedance (Ohm): 50

Geometry: STRAIGHT

Connector Type: PLUG

Gender 1: MALE

Cable Standard: AEP 240FR, LMR 240

Cable Attachment: CRIMP TYPE, FULL CRIMP TYPE

Cable Groups: 6.1/50 S

Mating System: QUICK-LOCK

Center Contact Plating: SILVER PASSIVATED OVER COPPER

Body Plating: BBR OVER SILVER

OR
QN / STRAIGHT PLUG FULL CRIMP TYPE CABLE 6.1/50 S

R164075010 - Please contact Radiall for additional information

This part is RoHS Compliant, click here for more details.

Datasheets
Datasheets
Cabling Instructions
3D.IGS
3D.STEP
